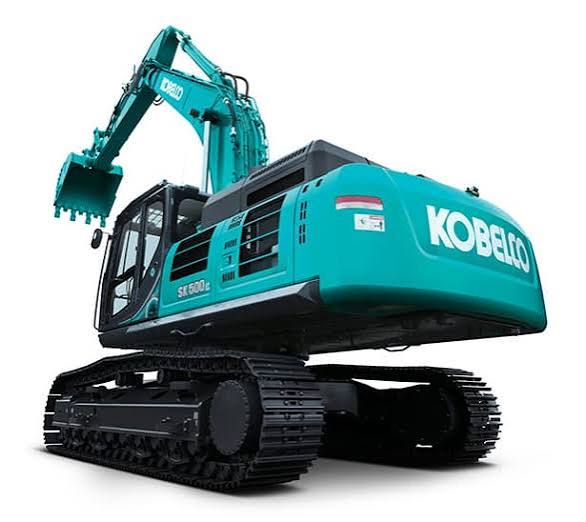

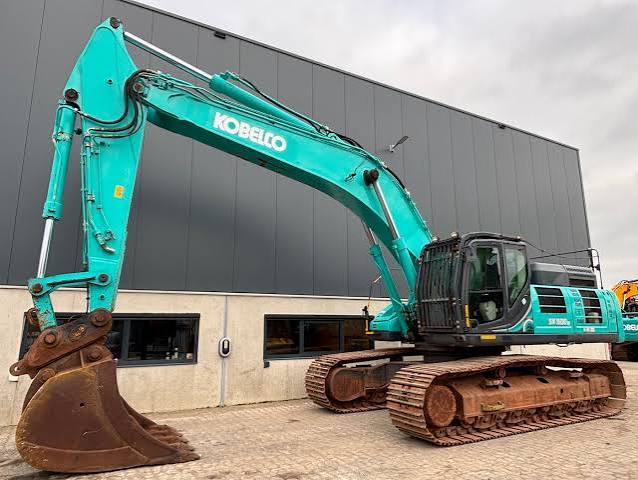

Kobelco
SK500LC-10
- Operating Weight
- 114,400 lb
- Max Digging Depth
- 308 in
- Max Digging Depth
- 332 in
- Net Power
- 363.5 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 114,400 lb |
|---|
Engine
| Engine Model | HINO P11C-VN |
|---|---|
| Displacement | 642 in³ |
| Power Measured @ | 1,850 rpm |
| Net Power | 363.5 hp |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 1,084 lb-ft |
| Stroke | 6 in |
| Bore | 5 in |
| Engine Type | Diesel engine with turbocharger and intercooler |
| Emission Tier Level | Tier IV final certified |
| Max Digging Reach | 531 in |
Weights
| Operating Weight | 117,947 lb |
|---|
Hydraulic System
| Boom cylinder | 332 in |
|---|---|
| Bucket cylinder | 268 in |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Overall Length | 478 in |
| Tail Swing Radius | 150 in |
| Track Gauge | 109 in |
| Overall width -Upper Structure | 124 in |
Undercarriage
| Max Travel Speed | 3.4 mph |
|---|
Fluid Capacities
| Fuel Tank | 168.6 gal |
|---|---|
| Hydraulic system | 166.7 gal |
| Engine Oil | 11.3 gal |
| Cooling system | 12.6 gal |
| Diesel exhaust fluid (DEF) tank | 22.0 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 308 in |
|---|---|
| Max Reach Along Ground | 475 in |
| Max Vertical Wall Digging Depth | 281 in |
| Max Digging Reach | 476 in |
| Max Digging Reach on Ground | 457 in |
| Bucket Digging Force - SAE | 57,551 lb |
| Max Digging Height | 422 in |
| Bucket Digging Force - ISO | 65,644 lb |
| Max Dumping Clearance | 289 in |
| Min Dumping Clearance | 109 in |
| Arm Crowd Force - SAE | 48,109 lb |
Swing Mechanism
| Swing Speed | 8 rpm |
|---|---|
| Swing radius | 150 in |
Boom/Stick Excavator Option 2
| Max Digging Depth | 332 in |
|---|---|
| Max Vertical Wall Digging Depth | 296 in |
| Max Digging Reach | 497 in |
| Max Digging Reach on Ground | 490 in |
| Max Dumping Clearance | 308 in |
| Min Dumping Clearance | 86 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 366 in |
|---|---|
| Max Vertical Wall Digging Depth | 332 in |
| Max Digging Reach on Ground | 524 in |
| Max Dumping Clearance | 328 in |
| Min Dumping Clearance | 53 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 256 in |
|---|---|
| Max Vertical Wall Dig Depth | 157 in |
| Max Digging Reach | 430 in |
