Kobelco

SK500LC-10 ME

Excavator

Operating Weight
113,979 lb
Max Digging Depth
308 in
Max Digging Depth
332 in
Net Power
369.0 hp
All excavators

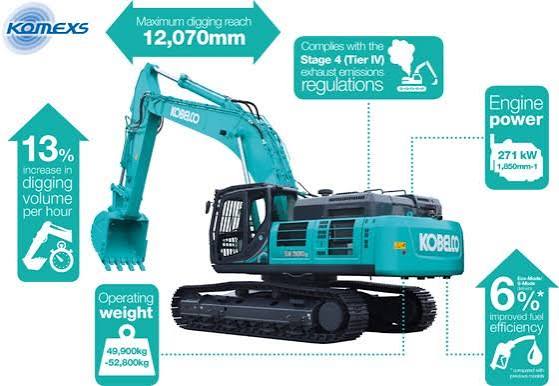

Kobelco SK500LC-10 ME Excavator
1 / 5
Image 1 of 5
Image: farmersequip.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight113,979 lb

Engine

Engine specifications
Engine ModelHINO P11C-VN
Displacement642 in³
Power Measured @1,850 rpm
Net Power369.0 hp
Max Torque1,084 lb-ft
Bore5 in
Stroke6 in
Engine TypeDiesel engine with turbocharger and intercooler Tier IV nal certied
Max Digging Reach531 in

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab133 in
Tail Swing Radius150 in
Track Gauge109 in

Undercarriage

Undercarriage specifications
Shoe Size36 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth308 in
Max Vertical Wall Digging Depth281 in
Minimum swing radius202 in
Max Digging Reach476 in
Max Digging Reach on Ground457 in
Max Digging Height422 in
Max Dumping Clearance289 in
Min Dumping Clearance109 in

General Specifications

General Specifications specifications
MaxPumpFlow195.5 gal/min

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth332 in
Max Vertical Wall Digging Depth296 in
Minimum swing radius205 in
Max Digging Reach497 in
Max Digging Reach on Ground490 in
Max Dumping Clearance308 in
Min Dumping Clearance86 in
Max. digging height439 in
Horizontal Digging Stroke - Ground278 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth366 in
Max Vertical Wall Digging Depth332 in
Max Reach Along Ground524 in
Minimum swing radius209 in
Max Dumping Clearance328 in
Min Dumping Clearance53 in
Horizontal Digging Stroke - Ground326 in
Max. digging height462 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth256 in
Max Vertical Wall Dig Depth157 in
Minimum swing radius187 in
Max Digging Reach430 in
