Kobelco

SK500LC-9 ME

Excavator

Operating Weight
117,286 lb
Max Digging Depth
256 in
Net Power
345.0 hp
All excavators

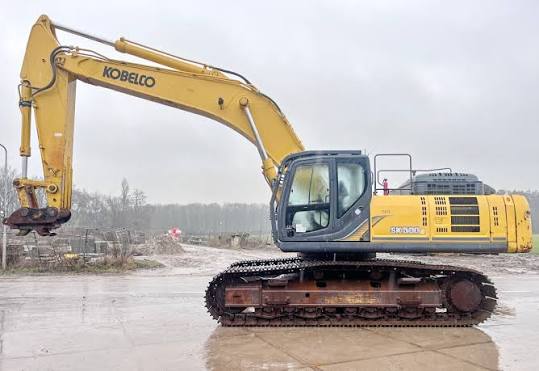

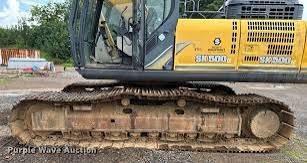

Kobelco SK500LC-9 ME Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight117,286 lb

Engine

Engine specifications
Engine ModelHINO PC11CVC
Power Measured @1,850 rpm
Net Power345.0 hp

Dimensions

Dimensions specifications
Overall Height158 in
Ground pressure9 psi

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth256 in
Max Reach Along Ground410 in
Max Vertical Wall Digging Depth486 in
Max Cutting Height414 in
Minimum swing radius187 in
Max Digging Reach430 in
Bucket Digging Force - SAE56,202 lb
Bucket Digging Force - ISO62,722 lb
Max Dumping Clearance274 in
Min Dumping Clearance122 in
Arm Crowd Force - SAE53,055 lb
Arm Crowd Force-ISO55,528 lb

Bucket

Bucket specifications
Reference Bucket Capacity4.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Overall height158 in
