Kobelco

SK850LC-9

Excavator

Operating Weight
182,102 lb
Max Digging Depth
328 in
Max Digging Depth
350 in
Net Power
510.0 hp
All excavators

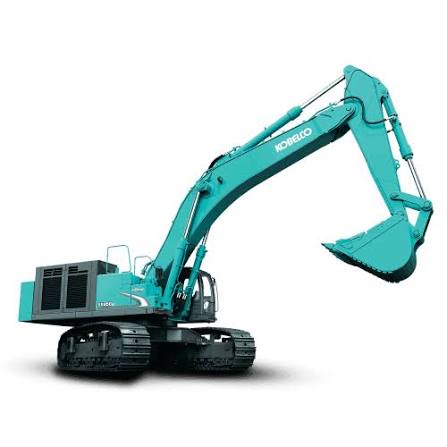

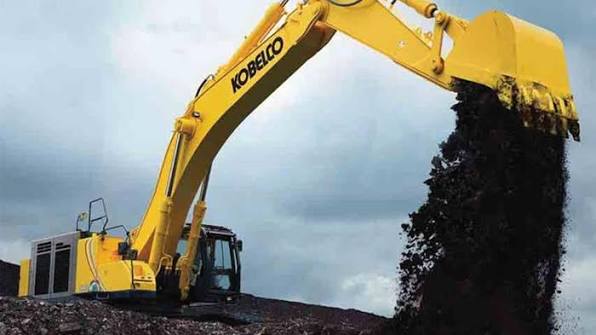

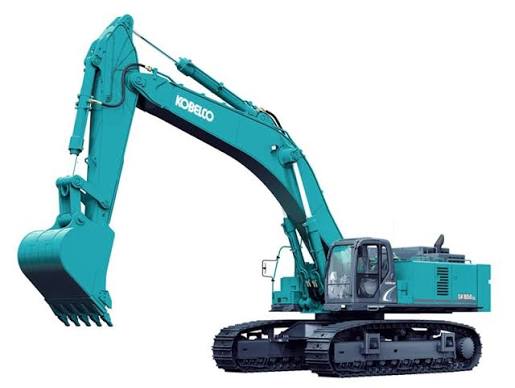

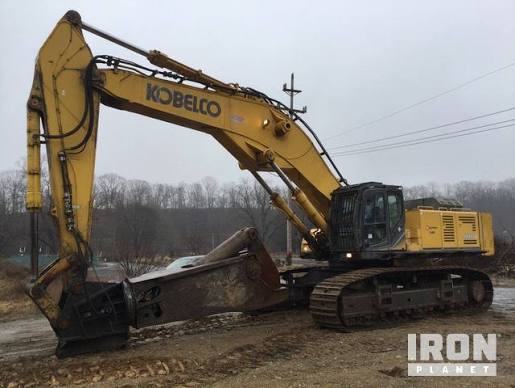

Kobelco SK850LC-9 Excavator
1 / 5
Image 1 of 5
Image: infra.tractorjunction.com

Specifications

81 data points

Operating Specifications

Operating Specifications specifications
Operating Weight182,102 lb
Fuel Capacity253.7 gal
Hydraulic System Fluid Capacity226.2 gal
Hydraulic System Relief Valve Pressure4,786 psi
Engine Oil Capacity14.3 gal
Cooling System Fluid Capacity19.6 gal
Operating Voltage24 V

Engine

Engine specifications
Displacement788 in³
Power Measured @1,800 rpm
Net Power510.0 hp
Torque Measured @1,350 rpm
Max Torque1,564 lb-ft
Stroke6 in
Bore5 in
Engine TypeDirect injection
Alternator60 A
Battery2 x 12 V
Starter9.4 hp
Max Digging Reach565 in

Hydraulic System

Hydraulic System specifications
Pump TypeThree variable displacement pumps and one gear pump

Dimensions

Dimensions specifications
Ground Clearance35 in
Height - Top of Cab144 in
Overall Length47 in
Tail Swing Radius180 in
Gradeability70.0 %
Overall width -Upper Structure145 in

Undercarriage

Undercarriage specifications
Ground Pressure14 psi
Track Gauge142 in
Max Travel Speed2.7 mph
Number of Shoes per Side51
Drawbar Pull143,203 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth328 in
Max Reach Along Ground520 in
Max Vertical Wall Digging Depth194 in
Max Cutting Height487 in
Minimum swing radius226 in
Max Digging Reach531 in
Bucket Digging Force - SAE97,118 lb
Max Dumping Clearance332 in
Min Dumping Clearance170 in
Arm Crowd Force - SAE75,986 lb
Arm Crowd Force-ISO78,908 lb
Bucket Digging Force86,552 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth350 in
Max Vertical Wall Digging Depth265 in
Max Cutting Height479 in
Max Reach Along Ground535 in
Minimum swing radius250 in
Max Digging Reach545 in
Bucket Digging Force - SAE79,582 lb
Bucket Digging Force - ISO90,598 lb
Max Dumping Clearance329 in
Min Dumping Clearance144 in
Horizontal Digging Stroke - Ground224 in
Arm Crowd Force-SAE67,443 lb
Arm Crowd Force-ISO69,916 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth373 in
Max Cutting Height487 in
Max Vertical Wall Digging Depth295 in
Max Reach Along Ground554 in
Minimum swing radius250 in
Bucket Digging Force - SAE79,582 lb
Bucket Digging Force - ISO90,598 lb
Max Dumping Clearance337 in
Min Dumping Clearance114 in
Arm Crowd Force-SAE59,125 lb
Horizontal Digging Stroke - Ground241 in
Arm Crowd Force-ISO61,148 lb

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth421 in
Max Cutting Height499 in
Max Reach Along Ground600 in
Max Vertical Wall Dig Depth332 in
Minimum swing radius252 in
Max Digging Reach601 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth292 in
Max Reach Along Ground469 in
Max Cutting Height461 in
Max Vertical Wall Dig Depth175 in
Bucket Digging Force - ISO97,118 lb
Bucket Digging Force - SAE86,552 lb
