Komatsu
860.3
- Operating Weight - 8wd
- 34,965 lb
- Operating Weight - 6wd
- 31,658 lb
- Max Speed
- 14.7 mph
- Displacement
- 403 in³
1 / 5

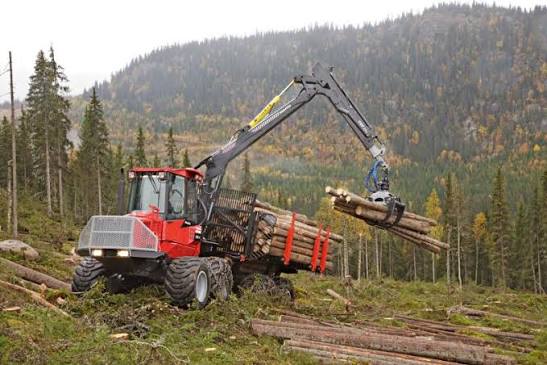

Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight - 8wd | 34,965 lb |
|---|---|
| Operating Weight - 6wd | 31,658 lb |
| Fuel Capacity | 42.3 gal |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Alternator Supplied Amperage | 140 A |
| Operating Voltage | 24 V |
| Front/Rear Tire Size - 8wd | 600/55x26.5 600/55x26.5 |
| Front/Rear Tire Size - 6wd | 600/65x34 600/55x26.5 |
Engine
| Engine Model | 66 CTA |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbo |
| Torque Measured @ | 1,500 rpm |
| Power | 188.0 hp |
| Torque | 594 lb-ft |
Hydraulic System
| Pump Type | single circuit load sensing with variable piston pump |
|---|---|
| Relief Valve Pressure | 3,400 psi |
| Flow Capacity | 76.7 gal/min |
Dimensions
| Ground Clearance | 28 in |
|---|---|
| Wheelbase | 261 in |
| Width Over Tires | 108 in |
| Length | 366 in |
| Length of Bunk Area | 60 in |
| Height to Top of crane | 150 in |
Transmission
| Max Speed | 14.7 mph |
|---|---|
| Transmission Type | Hydrostatic |
Bunk
| Load Area | 19.33 yd³ |
|---|---|
| Load Weight - 8wd | 30,865 lb |
| Load Weight - 6wd | 30,865 lb |
Crane
| Max Reach | 307 in |
|---|---|
| Gross Lift Torque | 84,699 lb-ft |
| Crane Type | CRF 10 |
| Gross Slew Torque | 21,170 lb-ft |
