Komatsu

890.3

Forwarder

Operating Weight - 8wd
42,108 lb
Operating Weight - 6wd
37,038 lb
Max Speed
15.6 mph
Displacement
452 in³
All forwarders

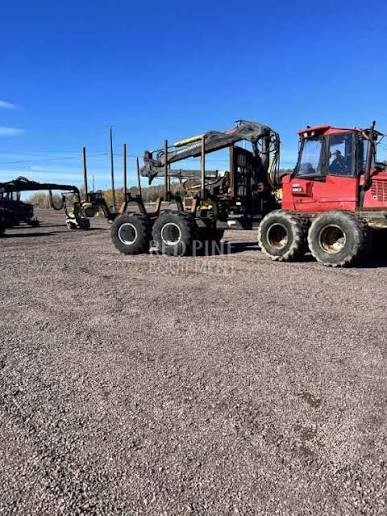

Komatsu 890.3 Forwarder
1 / 5
Image 1 of 5
Image: forestryequipmentsales.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd42,108 lb
Operating Weight - 6wd37,038 lb
Fuel Capacity55.5 gal
Hydraulic System Fluid Capacity34.4 gal
Alternator Supplied Amperage140 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd650/65x26.5 750/55x26.5
Front/Rear Tire Size - 6wd700/70x34 650/65x26.5

Engine

Engine specifications
Engine Model74 CTA Tier 3
Displacement452 in³
Power Measured @2,000 rpm
Number of Cylinders6
AspirationTurbo
Torque Measured @1,500 rpm
Power204.0 hp
Torque742 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Typesingle circuit load sensing with variable piston pump
Relief Valve Pressure3,400 psi
Flow Capacity89.9 gal/min

Dimensions

Dimensions specifications
Ground Clearance28 in
Wheelbase126 in
Width Over Tires126 in
Length366 in
Length of Bunk Area60 in
Height to Top of crane150 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission Typehydrostatic

Bunk

Bunk specifications
Load Area24.04 yd³
Load Weight - 8wd39,683 lb
Load Weight - 6wd39,683 lb

Crane

Crane specifications
Max Reach296 in
Gross Lift Torque114,298 lb-ft
Gross Slew Torque30,460 lb-ft
