Komatsu
Terex
33-11C

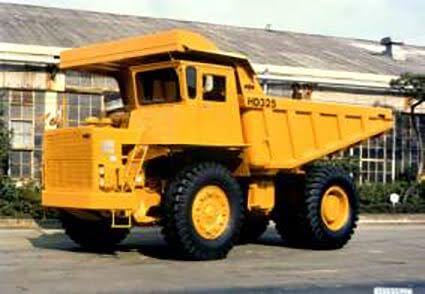

Off-Highway Truck
19 specifications
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Fuel Capacity | 501.9 gal |
|---|---|
| Tire Size | 30.00-51-49PR |
| Engine Oil Capacity | 38.4 gal |
| Cooling System Fluid Capacity | 153.3 gal |
| Hydraulic System Fluid Capacity | 105.7 gal |
| Alternator Supplied Amperage | — |
| Diff and Final Drive Fluid Capacity | 126.9 gal |
Engine
| Engine Model | KTA-2300-C1200 |
|---|---|
| Displacement | 2,300 in³ |
| Gross Power | 1,200.0 hp |
| Net Power | 1,160.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | — |
| Rated Engine Speed | 106 rpm |
Weights
| Empty Weight | 178,575 lb |
|---|---|
| Loaded Weight | 443,129 lb |
| Weight Distribution Front - loaded | 32.0 % |
| Weight Distribution Rear - loaded | 68.0 % |
| Weight Distribution Front - empty | 48.0 % |
| Weight Distribution Rear - empty | 52.0 % |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Wheelbase | 214 in |
| Overall Length | 430 in |
| Overall Width | 233 in |
| Overall Height | 193 in |
| Dump Height | 415 in |
| Dump Ground Clearance | 66 in |
Transmission
| Max Speed | 37.3 mph |
|---|---|
| Transmission Type | Komatsu TORQFLOW planetary gear |
| Number of Gears - Forward | 8 |
| Number of Gears - Reverse | 1 |
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 239,973.9 gal |
|---|
Dump
| Dump Angle | 48 ° |
|---|---|
| Load Capacity - heaped | 91.60 yd³ |
