Komatsu

HD605-7

Off-Highway Truck

Operating Weight
242,900 lb
Max Speed
43.5 mph
Gross Power
739.0 hp
Net Power
715.0 hp
All off-highway trucks

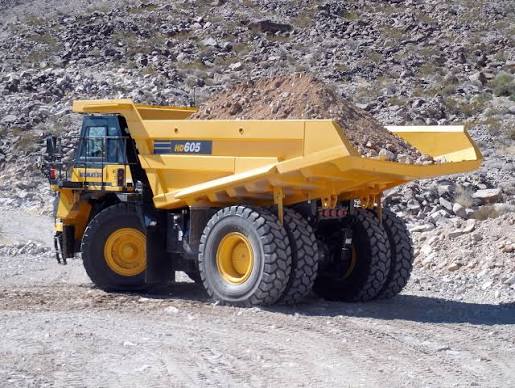

Komatsu HD605-7 Off-Highway Truck
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity206.1 gal
Engine Oil Capacity15.1 gal
Hydraulic System Fluid Capacity32.2 gal
Alternator Supplied Amperage—
Diff and Final Drive Fluid Capacity36.2 gal

Engine

Engine specifications
Engine ModelSAA6D170E-3
Displacement1,413 in³
Gross Power739.0 hp
Net Power715.0 hp
Number of Cylinders6
AspirationTurbo-charged
Torque Measured @—
MakeKomatsu
Rated Engine Speed32 rpm

Weights

Weights specifications
Operating Weight242,900 lb
Empty Weight101,190 lb
Loaded Weight242,290 lb
Weight Distribution Front - loaded32.0 %
Weight Distribution Rear - loaded68.0 %
Weight Distribution Front - empty47.0 %
Weight Distribution Rear - empty53.0 %

Dimensions

Dimensions specifications
Wheelbase169 in
Overall Length369 in
Overall Width168 in
Overall Height174 in
Dump Height347 in

Transmission

Transmission specifications
Max Speed43.5 mph
Transmission TypeFull-automatic planetary type
Number of Gears - Forward7
Number of Gears - Reverse1

Drive System

Drive System specifications
Drive Configrwd

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank125,986.3 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle48 °
Load Capacity - heaped52.29 yd³
Load Capacity - Struck37.90 yd³
