Komatsu

PC03-2

Mini Excavator

Operating Weight
1,918 lb
Max Digging Depth
60 in
Net Power
7.4 hp
All mini excavators

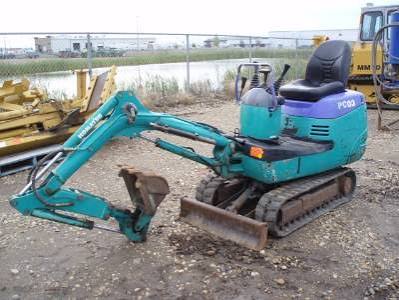

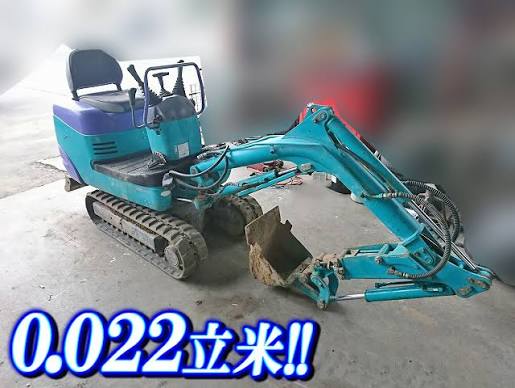

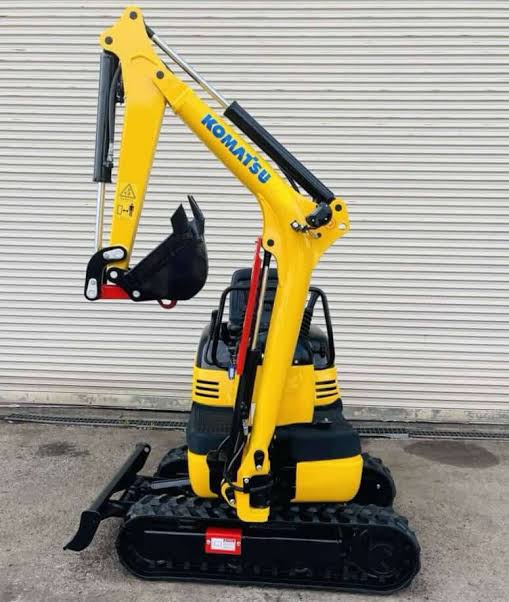

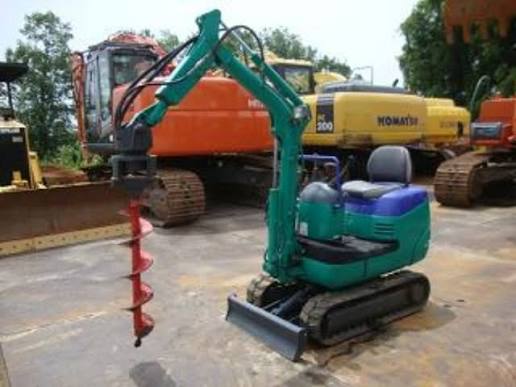

Komatsu PC03-2 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,918 lb
Fuel Capacity3.5 gal
Hydraulic Pump Flow Capacity5.4 gal/min
Hydraulic System Fluid Capacity3.2 gal
Hydraulic System Relief Valve Pressure2,280 psi

Engine

Engine specifications
Engine Model1D84
Displacement24 in³
Power Measured @2,800 rpm
Net Power7.4 hp

Dimensions

Dimensions specifications
Ground Clearance7 in
Length of Track on Ground36 in
Tail Swing Radius31 in
Width to Outside of Tracks32 in
Removal Counterweight Clearance15 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge25 in
Max Travel Speed1.2 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth60 in
Max Reach Along Ground109 in
Max Vertical Wall Digging Depth47 in
Max Loading Height79 in
Shipping Length of Unit111 in
Max Cutting Height110 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
