Komatsu
PC1100-6
- Operating Weight
- 226,600 lb
- Max Digging Depth
- 369 in
- Max Digging Depth
- 411 in
- Net Power
- 611.0 hp
1 / 5

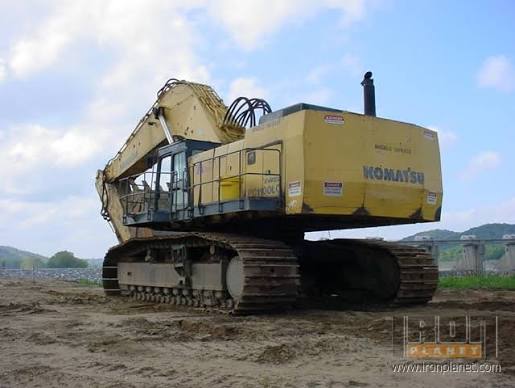

Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 226,600 lb |
|---|---|
| Fuel Capacity | 359.3 gal |
| Hydraulic Pump Flow Capacity | 419.6 gal/min |
| Hydraulic System Fluid Capacity | 177.0 gal |
| Hydraulic System Relief Valve Pressure | 4,978 psi |
| Engine Oil Capacity | 12.7 gal |
| Cooling System Fluid Capacity | 36.8 gal |
| Swing Drive Fluid Capacity | 5.7 gal |
| Swing Speed | 6 rpm |
Engine
| Power Measured @ | 1,800 rpm |
|---|---|
| Gross Power | 611.0 hp |
| Net Power | 611.0 hp |
| Number of Cylinders | 6 |
Dimensions
| Ground Clearance | 40 in |
|---|---|
| Height - Top of Cab | 152 in |
| Length of Track on Ground | 197 in |
| Tail Swing Radius | 192 in |
| Width to Outside of Tracks | 181 in |
| Removal Counterweight Clearance | 71 in |
| Upper Structure Ground Clearance | 71 in |
| Length of Tracks | 253 in |
Undercarriage
| Ground Pressure | 19 psi |
|---|---|
| Track Gauge | 154 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 2.0 mph |
| Shoe Size | 28 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 154,324 lb |
| Loading Shovel Operating Weight | 238,100 lb |
| Loading Shovel Shoe Width | 28 in |
| Loading Shovel Ground Pressure | 20 psi |
Boom/Stick Excavator Option 1
| Max Digging Depth | 369 in |
|---|---|
| Max Reach Along Ground | 592 in |
| Max Loading Height | 342 in |
| Max Vertical Wall Digging Depth | 300 in |
| Max Cutting Height | 528 in |
| Shipping Length of Unit | 631 in |
| Shipping Height of Unit | 239 in |
Bucket
| Reference Bucket Capacity | 6.61 yd³ |
|---|---|
| Minimum Bucket Capacity | 4.50 yd³ |
Swing Mechanism
| Swing Speed | 6 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 411 in |
|---|---|
| Max Vertical Wall Digging Depth | 335 in |
| Max Cutting Height | 531 in |
| Max Loading Height | 355 in |
| Max Reach Along Ground | 630 in |
| Shipping Length of Unit | 632 in |
| Shipping Height of Unit | 254 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 457 in |
|---|---|
| Max Cutting Height | 548 in |
| Max Loading Height | 372 in |
| Max Vertical Wall Digging Depth | 374 in |
| Max Reach Along Ground | 676 in |
| Shipping Length of Unit | 624 in |
| Shipping Height of Unit | 276 in |
Loading Shovel
| Max Dig Depth | 144 in |
|---|---|
| Max Cutting Height | 489 in |
| Max Dump Height | 347 in |
| Max Dig Reach | 450 in |
| Height to Top of Boom - shovel | 233 in |
| Overall Length - shovel | 439 in |
