Liebherr

R960 SME Litronic

Excavator

Operating Weight
138,560 lb
Max Digging Depth
276 in
Max Digging Depth
294 in
All excavators

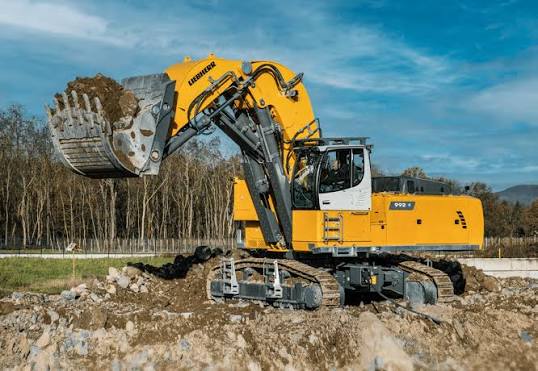

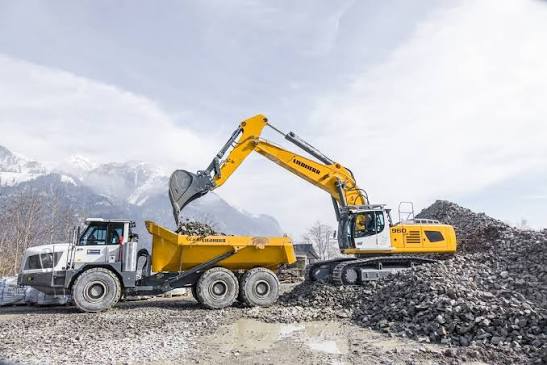

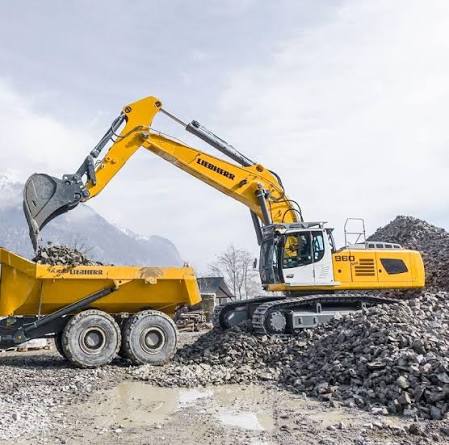

Liebherr R960 SME Litronic Excavator
1 / 5
Image 1 of 5
Image: deutzengine.en.made-in-china.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight138,560 lb

Engine

Engine specifications
Engine ModelD946 A7
Displacement488 in³
Power Measured @1,800 rpm
Torque Measured @1,000 rpm
Max Torque1,682 lb-ft
Stroke6 in
Bore5 in
Emission Tier LevelTier 4 Final
Air cleanerDry-type
Cooling systemwater-cooled
Horsepower, Net-ISO 9249340.0 hp
Horsepower, Net-SAE J1349335.0 hp

Hydraulic System

Hydraulic System specifications
system pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance26 in
Height - Top of Cab110 in
Wheelbase180 in
Undercarriage Width154 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Max Travel Speed2.2 mph
Number of Carrier Rollers per Side2
Drawbar Pull107,459 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank203.0 gal
Hydraulic system137.0 gal
Urea tank25.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth276 in
Max.Dumping Height282 in
Maximum Reach at Ground Level426 in
Max. teeth height385 in
Breakout force - ISO78,705 lb
Digging force - ISO72,091 lb

Bucket

Bucket specifications
Maximum Bucket Capacity4.90 yd³

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth294 in
Max.Dumping Height289 in
Max. teeth height403 in
Maximum Reach at Ground Level36 in
Breakout force-ISO78,705 lb
Digging force - ISO64,816 lb

Electrical System

Electrical System specifications
Batteries2 x 180 Ah / 12 V volts
Alternator—
Voltage24 V
Engine idlingSensor controlled
