Liebherr

A954BHD

Excavator

Operating Weight
138,891 lb
Net Power
302.0 hp
All excavators

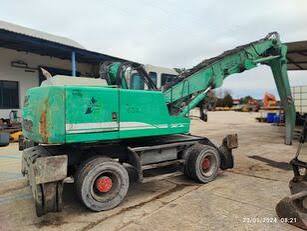

Liebherr A954BHD Excavator
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight138,891 lb
Operating Weight w/o Attachment140,875 lb
Fuel Capacity186.6 gal
Hydraulic Pump Flow Capacity92.5 gal/min
Hydraulic System Fluid Capacity211.4 gal
Hydraulic System Relief Valve Pressure5,076 psi
Alternator Supplied Amperage80 A
Hydraulic Pump Typevariable displacement swash plate

Engine

Engine specifications
Engine ModelD 926 TI-E
Displacement610 in³
Power Measured @2,000 rpm
Net Power302.0 hp
Number of Cylinders6

Hydraulic System

Hydraulic System specifications
Pump TypeLiebherr variable displacement swash plate in line double pump
Pump Capacity185.0 gal/min
Relief Pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab157 in
Wheelbase143 in
Overall Width11 in
Tail Swing Radius151 in
Shipping Height157 in
Shipping Length512 in
Overall Width - Outriggers Down224 in
Undercarriage Width146 in
Upperstructure Clearance77 in
Height to Top of Cab - fixed riser203 in

Transmission

Transmission specifications
Max Speed6.3 mph
Max Travel Speed6.3 mph

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Shipping Length of Unit512 in
Shipping Height of Unit157 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Shipping Height of Unit157 in
Shipping Length of Unit571 in

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 1Boom 8800mm w/stick 7000mm
Max Depth168 in
Max Height670 in
Max Reach Along Ground600 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 2Boom 8800mm w/stick 8000mm
Max Depth216 in
Max Height696 in
Max Reach Along Ground648 in

Wheel Undercarriage

Wheel Undercarriage specifications
Wheelbase143 in
Width w/ Stabilizers on Ground224 in
Tire Size—
