Komatsu

PC12R-8

Mini Excavator

Operating Weight
2,866 lb
Max Digging Depth
76 in
Net Power
13.9 hp
All mini excavators

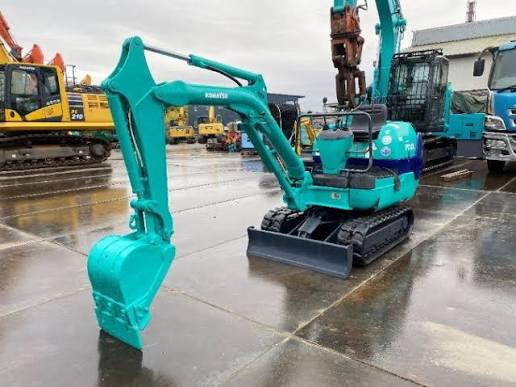

Komatsu PC12R-8 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,866 lb
Fuel Capacity5.3 gal
Hydraulic Pump Flow Capacity9.9 gal/min
Hydraulic System Fluid Capacity3.5 gal
Hydraulic System Relief Valve Pressure2,700 psi

Engine

Engine specifications
Engine Model3D68E
Displacement48 in³
Power Measured @2,450 rpm
Net Power13.9 hp

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab89 in
Length of Track on Ground41 in
Tail Swing Radius43 in
Width to Outside of Tracks40 in
Removal Counterweight Clearance15 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge32 in
Max Travel Speed2.5 mph
Shoe Size8 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth76 in
Max Reach Along Ground135 in
Max Vertical Wall Digging Depth60 in
Max Loading Height93 in
Shipping Length of Unit138 in
Max Cutting Height132 in
Shipping Height of Unit89 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth86 in
Max Cutting Height139 in
Max Loading Height100 in
Max Vertical Wall Digging Depth70 in
Max Reach Along Ground146 in
Shipping Height of Unit89 in
Shipping Length of Unit144 in
