Komatsu

PC18MR-2

Mini Excavator

Operating Weight
1,855 lb
Max Digging Depth
85 in
Net Power
15.0 hp
All mini excavators

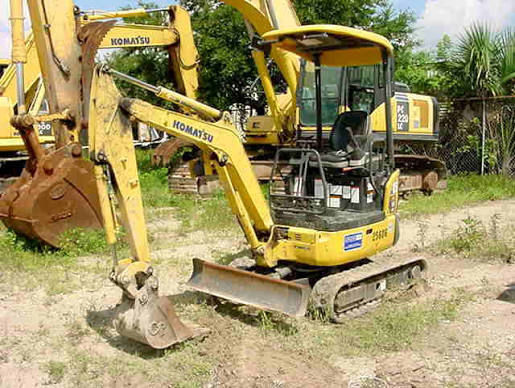

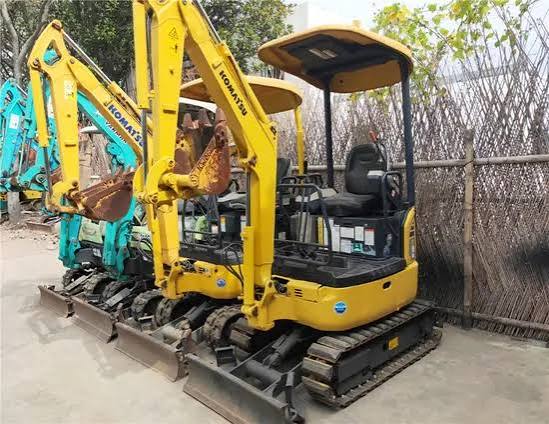

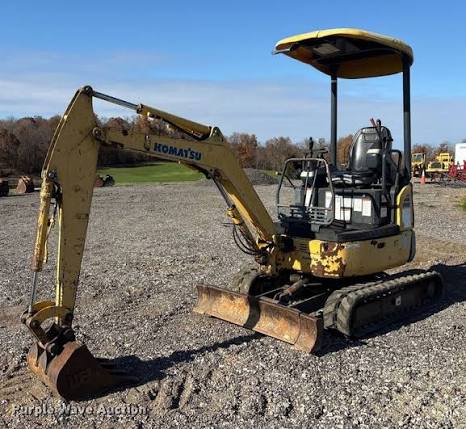

Komatsu PC18MR-2 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,855 lb
Fuel Capacity5.0 gal
Hydraulic System Fluid Capacity4.0 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity0.9 gal

Engine

Engine specifications
Engine Model3D67E-5
Displacement47 in³
Power Measured @47 rpm
Net Power15.0 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance144 in
Height - Top of Cab96 in
Length of Track on Ground61 in
Tail Swing Radius29 in
Width to Outside of Tracks40 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side3
Max Travel Speed2.7 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth85 in
Max Reach Along Ground158 in
Max Vertical Wall Digging Depth71 in
Max Loading Height103 in
Max Cutting Height143 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth95 in
Max Cutting Height150 in
Max Loading Height111 in
Max Vertical Wall Digging Depth166 in
Max Reach Along Ground168 in
