Komatsu

PC150-5

Excavator

Operating Weight
33,907 lb
Max Digging Depth
223 in
Max Digging Depth
239 in
Net Power
99.3 hp
All excavators

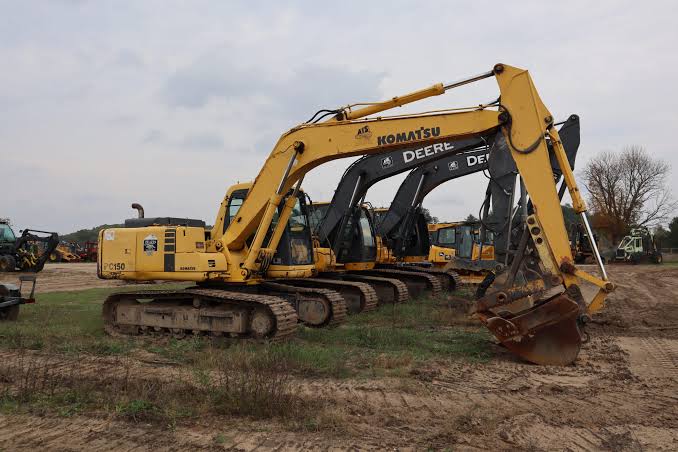

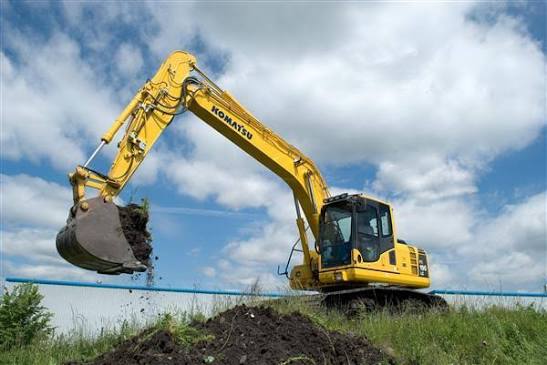

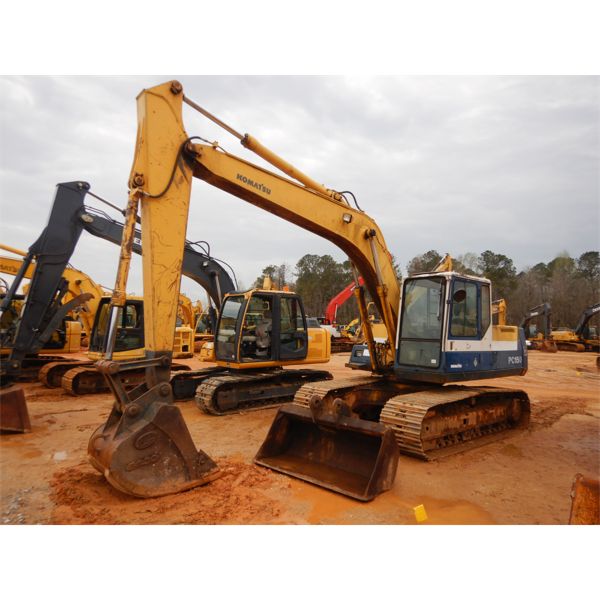

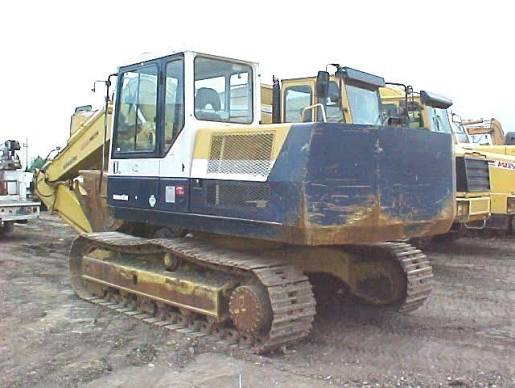

Komatsu PC150-5 Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,907 lb
Fuel Capacity60.8 gal
Hydraulic Pump Flow Capacity73.0 gal/min
Hydraulic System Fluid Capacity35.7 gal
Hydraulic System Relief Valve Pressure4,620 psi

Engine

Engine specifications
Engine ModelS6D95L
Displacement299 in³
Power Measured @2,000 rpm
Net Power99.3 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab111 in
Length of Track on Ground114 in
Tail Swing Radius97 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance40 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge79 in
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth223 in
Max Reach Along Ground336 in
Max Loading Height244 in
Max Vertical Wall Digging Depth193 in
Max Cutting Height347 in
Shipping Length of Unit336 in
Shipping Height of Unit114 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth239 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height348 in
Max Loading Height246 in
Max Reach Along Ground347 in
Shipping Length of Unit335 in
Shipping Height of Unit111 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth251 in
Max Cutting Height353 in
Max Loading Height251 in
Max Vertical Wall Digging Depth212 in
Max Reach Along Ground357 in
Shipping Length of Unit335 in
Shipping Height of Unit115 in
