Komatsu

PC150LGP-6

Excavator

Operating Weight
34,899 lb
Max Digging Depth
191 in
Max Digging Depth
206 in
Net Power
86.0 hp
All excavators

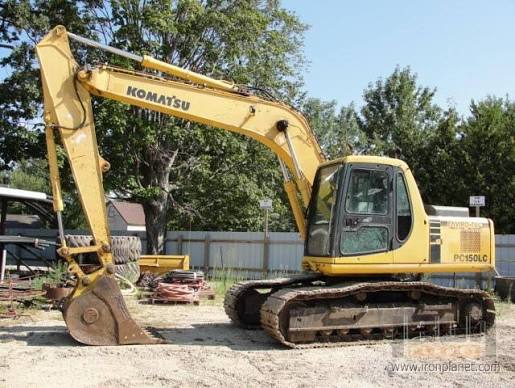

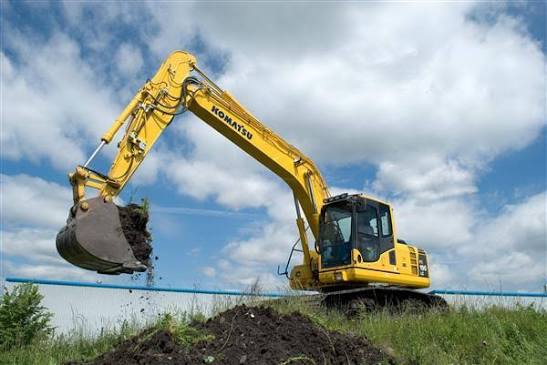

Komatsu PC150LGP-6 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,899 lb
Fuel Capacity63.5 gal
Hydraulic Pump Flow Capacity72.2 gal/min
Hydraulic System Fluid Capacity23.8 gal
Hydraulic System Relief Valve Pressure5,192 psi
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity4.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.7 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelS4D102E-1
Displacement239 in³
Power Measured @2,200 rpm
Gross Power91.0 hp
Net Power86.0 hp
AspirationTurbocharged

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side7
Max Travel Speed2.9 mph
Shoe Size32 in
Number of Shoes per Side45
Number of Carrier Rollers per Side2
Drawbar Pull30,673 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth191 in
Max Reach Along Ground306 in
Max Loading Height240 in
Max Vertical Wall Digging Depth170 in
Max Cutting Height336 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth206 in
Max Vertical Wall Digging Depth186 in
Max Cutting Height346 in
Max Loading Height250 in
Max Reach Along Ground322 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth224 in
Max Cutting Height360 in
Max Loading Height264 in
Max Vertical Wall Digging Depth205 in
Max Reach Along Ground339 in
