Komatsu

PC160-6

Excavator

Operating Weight
35,935 lb
Max Digging Depth
206 in
Max Digging Depth
223 in
Net Power
107.0 hp
All excavators

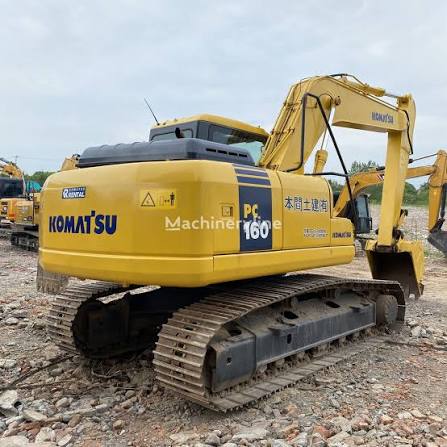

Komatsu PC160-6 Excavator
1 / 5
Image 1 of 5
Image: machinio.com

Specifications

68 data points

Operating Specifications

Operating Specifications specifications
Operating Weight35,935 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity73.0 gal/min
Hydraulic System Fluid Capacity31.8 gal
Engine Oil Capacity4.3 gal
Cooling System Fluid Capacity5.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelSA4D102E
Displacement239 in³
Power Measured @2,100 rpm
Gross Power113.0 hp
Net Power107.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab111 in
Length of Track on Ground114 in
Tail Swing Radius96 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance40 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side6
Max Travel Speed3.5 mph
Shoe Size20 in
Number of Shoes per Side41
Number of Carrier Rollers per Side1
Drawbar Pull30,424 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth206 in
Max Reach Along Ground323 in
Max Loading Height240 in
Max Vertical Wall Digging Depth180 in
Max Cutting Height344 in
Shipping Length of Unit339 in
Shipping Height of Unit117 in

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth223 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height347 in
Max Loading Height245 in
Max Reach Along Ground336 in
Shipping Length of Unit339 in
Shipping Height of Unit118 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth236 in
Max Cutting Height349 in
Max Loading Height248 in
Max Vertical Wall Digging Depth226 in
Max Reach Along Ground353 in
Shipping Length of Unit339 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth248 in
Max Cutting Height355 in
Max Reach Along Ground357 in
Max Loading Height253 in
Max Vertical Wall Dig Depth228 in
Shipping Length of Unit340 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth200 in
Max Reach Along Ground325 in
Max Cutting Height356 in
Max Loading Height251 in
Max Vertical Wall Dig Depth162 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth216 in
Max Reach Along Ground339 in
Max Cutting Height362 in
Max Loading Height257 in
Max Vertical Wall Dig Depth176 in
