Komatsu

PC300HD-7

Excavator

Operating Weight
78,680 lb
Net Power
242.0 hp
All excavators

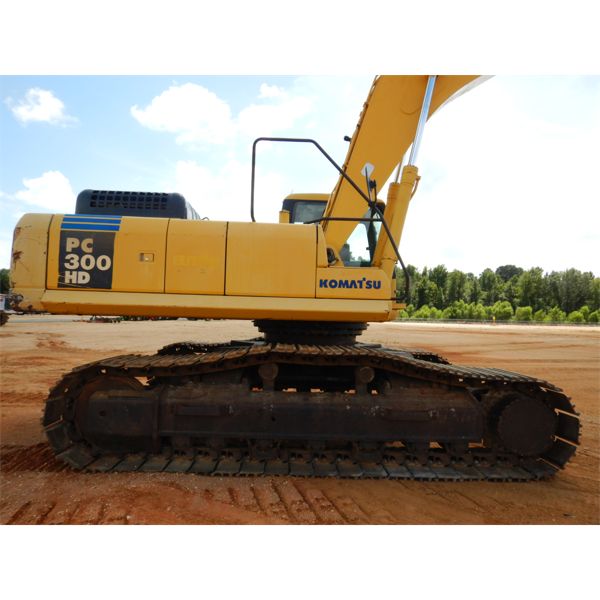

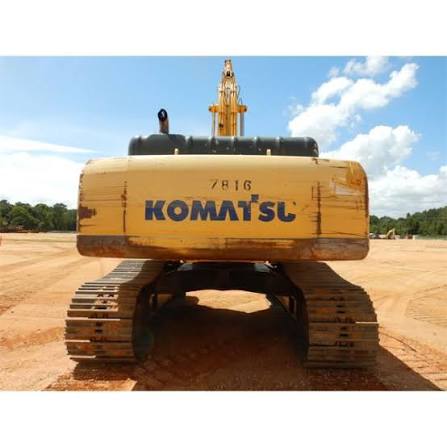

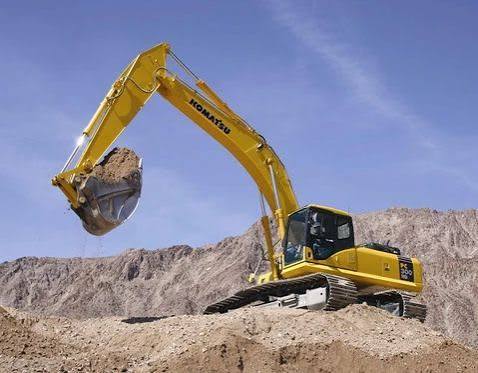

Komatsu PC300HD-7 Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight78,680 lb

Engine

Engine specifications
Engine ModelSAA6D114E-2
Power Measured @1,900 rpm
Net Power242.0 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Typepiston

Dimensions

Dimensions specifications
Digging Depth288 in
Digging Reach288 in

Transmission

Transmission specifications
Transmission Typehydrostatic
Number of Forward Gears2

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 12-piece front 14.6m 48'
Max Depth204 in
Max Height630 in
Max Reach Along Ground570 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 23-piece front 14.0m 46'
Max Depth210 in
Max Height570 in
Max Reach Along Ground540 in

Track Undercarriage

Track Undercarriage specifications
Shoe Size32 in
Number of Track Rollers per Side7
