Komatsu

PC340NLC-6

Excavator

Operating Weight
73,039 lb
Max Digging Depth
251 in
Max Digging Depth
264 in
Net Power
232.0 hp
All excavators

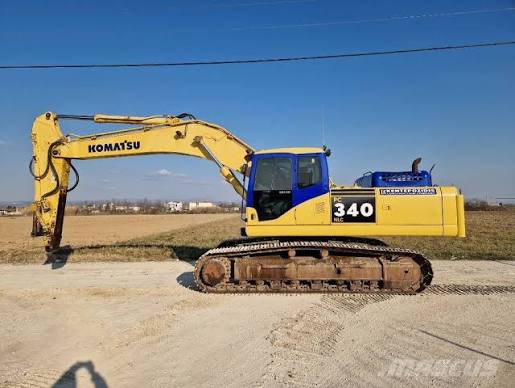

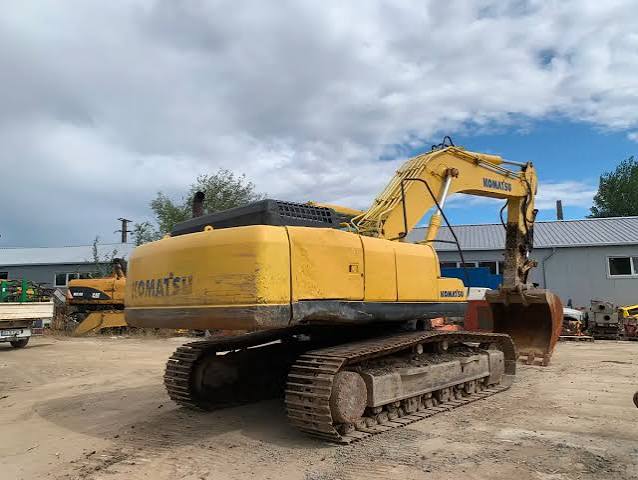

Komatsu PC340NLC-6 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

60 data points

Operating Specifications

Operating Specifications specifications
Operating Weight73,039 lb
Fuel Capacity142.7 gal
Hydraulic Pump Flow Capacity141.6 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure5,049 psi
Engine Oil Capacity7.4 gal
Cooling System Fluid Capacity8.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelSAA6D108E-2
Displacement436 in³
Power Measured @2,050 rpm
Gross Power245.0 hp
Net Power232.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab124 in
Length of Track on Ground159 in
Tail Swing Radius130 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge95 in
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull50,706 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth251 in
Max Reach Along Ground393 in
Max Loading Height260 in
Max Vertical Wall Digging Depth202 in
Max Cutting Height378 in
Shipping Length of Unit438 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity1.80 yd³
Maximum Bucket Capacity2.39 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth264 in
Max Vertical Wall Digging Depth231 in
Max Cutting Height393 in
Max Loading Height272 in
Max Reach Along Ground408 in
Shipping Length of Unit433 in
Shipping Height of Unit134 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth292 in
Max Cutting Height402 in
Max Loading Height281 in
Max Vertical Wall Digging Depth256 in
Max Reach Along Ground431 in
Shipping Length of Unit431 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth323 in
Max Cutting Height417 in
Max Reach Along Ground462 in
Max Loading Height295 in
Max Vertical Wall Dig Depth287 in
Shipping Length of Unit433 in
