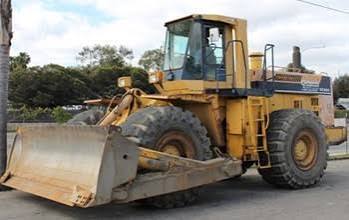

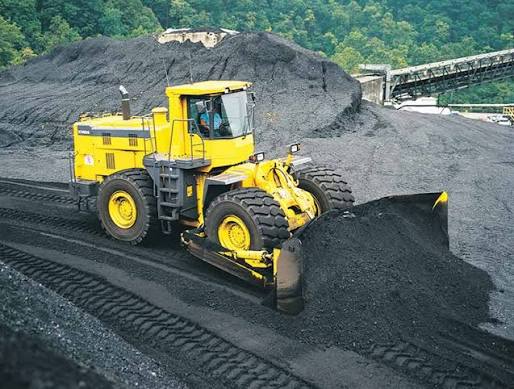

Komatsu
Michigan
380B
Wheel Dozer
29 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 90,566 lb |
|---|---|
| Fuel Capacity | 161.2 gal |
| Tire Size | 35/65-33-24PR |
| Engine Oil Capacity | 11.4 gal |
| Front Diff Fluid Capacity | 29.1 gal |
| Rear Diff Fluid Capacity | 29.1 gal |
| Transmission Fluid Capacity | 29.1 gal |
| Cooling System Fluid Capacity | 35.7 gal |
| Axle Oscillation | 13 ° |
| Alternator Supplied Amperage | 50 A |
| Operating Voltage | 24 V |
| Steering Angle | 40 ° |
Engine
| Engine Model | S6D170 |
|---|---|
| Displacement | 1,413 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 453.3 hp |
| Number of Cylinders | 6 |
| Aspiration | natural |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 168 in |
| Wheelbase | 159 in |
| Width Over Tires | 142 in |
| Length With Blade on Ground | 359 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|---|
| Max Speed - Reverse | 23.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | planetary gear type |
Blades
| Blade Capacity | 9.90 yd³ |
|---|---|
| Blade Width | 187 in |
| Blade Height | 59 in |
