Komatsu

WD600-3

Wheel Dozer

Max Speed - Forward
22.5 mph
All wheel dozers

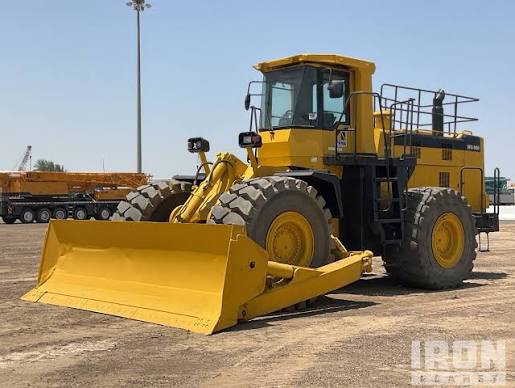

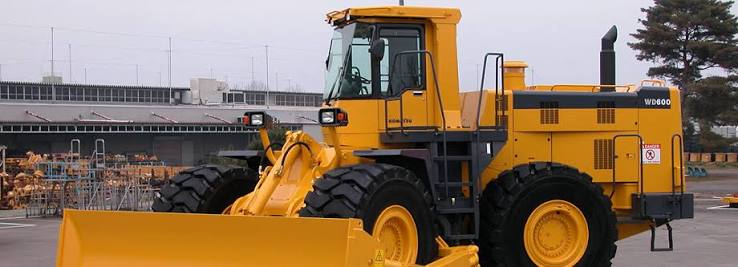

Komatsu WD600-3 Wheel Dozer
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity177.0 gal
Engine Oil Capacity12.4 gal
Front Diff Fluid Capacity32.8 gal
Rear Diff Fluid Capacity32.8 gal
Cooling System Fluid Capacity42.3 gal
Alternator Supplied Amperage75 A
Operating Voltage24 V
Steering Angle40 °

Engine

Engine specifications
Engine ModelSAA6D170E-3
Displacement1,413 in³
Aspirationair-to-air aftercooled turbocharged

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab168 in
Wheelbase162 in
Width Over Tires142 in
Length With Blade on Ground366 in

Transmission

Transmission specifications
Max Speed - Forward22.5 mph
Max Speed - Reverse24.9 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typefull-powershift planetary gear type

Blades

Blades specifications
Blade Capacity10.50 yd³
Blade Width202 in
Blade Height56 in
