Kubota

KX015-4

Mini Excavator

Operating Weight
3,406 lb
Max Digging Depth
89 in
Net Power
12.9 hp
All mini excavators

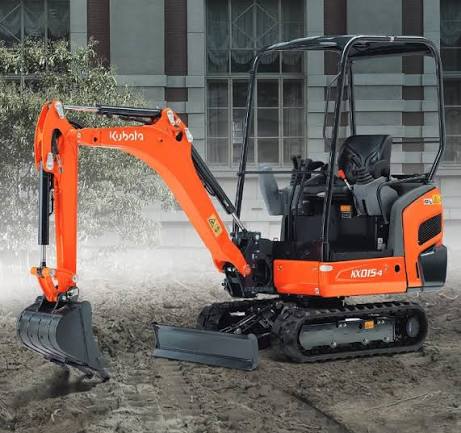

Kubota KX015-4 Mini Excavator
1 / 5
Image 1 of 5
Image: kuk.kubota-eu.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,406 lb
Fuel Capacity5.6 gal
Hydraulic System Fluid Capacity7.4 gal

Engine

Engine specifications
Engine ModelD782-BH
Displacement778 in³
Power Measured @2,300 rpm
Net Power12.9 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab94 in
Length of Track on Ground146 in

Undercarriage

Undercarriage specifications
Ground Pressure0 psi
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth89 in
Max Reach Along Ground146 in
Max Vertical Wall Digging Depth72 in
Max Loading Height91 in
Max Cutting Height133 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
