Kubota

R630

Wheel Loader

Operating Weight
10,230 lb
Bucket Capacity - heaped
1.40 yd³
Gross Power
51.0 hp
Net Power
47.9 hp
All wheel loaders

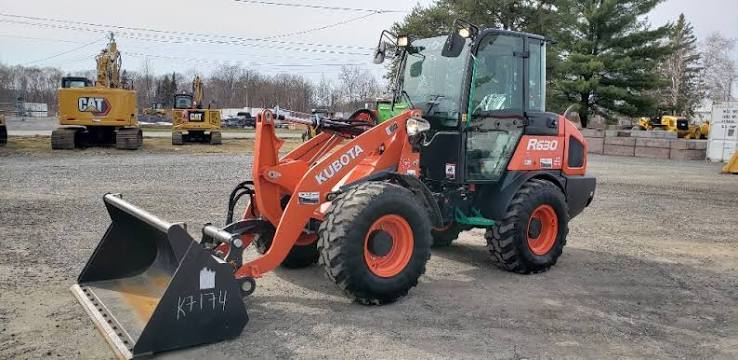

Kubota R630 Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,230 lb
Tire Size405 / 70 R18
Static Tipping Weight7,606 lb
Rear Axle Oscillation8 °
Rated Bucket Capacity0.99 yd³
Traction force8,588 lb

Engine

Engine specifications
Engine ModelV2607-CR-TE4
Displacement160 in³
Power Measured @2,400 rpm
Gross Power51.0 hp
Net Power47.9 hp
Number of Cylinders4
AspirationWater-cooled
Engine MakeKUBOTA
MakeKubota
Emissions CertificationTier4 Final

Weights

Weights specifications
Operating Weight10,229 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.8 gal/min
Raise Time5.9 s
Lower Time4.2 s

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab98 in
Wheelbase79 in
Width Over Tires72 in
Reach at Max Lift and Dump33 in
Length with Bucket on Ground205 in
Hinge Pin - Max Height128 in
Articulation Angle40 °
Tread55 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission TypeHydrostatic transmission

Fluid Capacities

Fluid Capacities specifications
Fuel Tank18.5 gal
Hydraulic system15.1 gal
Hydraulic oil tank10.4 gal

Bucket

Bucket specifications
Bucket Capacity - heaped1.40 yd³
Dump Clearance at Max Raise100 in
Breakout Force10,409 lb

General Specifications

General Specifications specifications
Operating Weight10,229 (4,640) — Starting 2019 Model Year
Bucket Capacity1 (0.76) — Starting 2019 Model Year
Engine typeKubota V2607 — Starting 2019 Model Year
Engine Power64 net (47.5) — Starting 2019 Model Year
Max Dump Height8.3 (2.53) — Starting 2019 Model Year

Electrical System

Electrical System specifications
Battery12 / 95 (V / Ah)
Starter12 / 2 (V / kW)
