Kubota
Case
21D
Wheel Loader
43 specifications

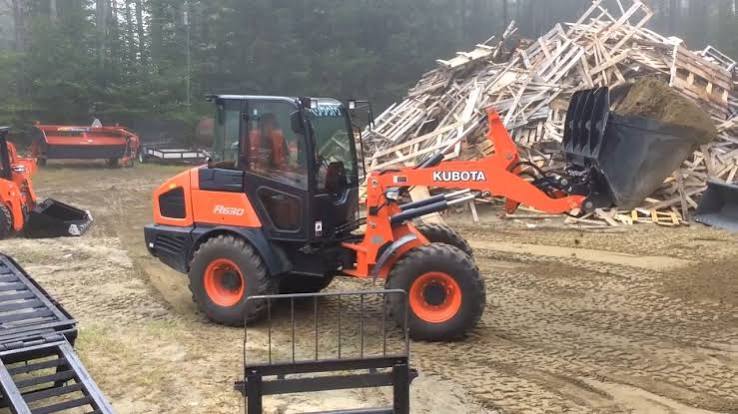

Kubota
R630C
- Operating Weight
- 10,725 lb
- Bucket Capacity - heaped
- 1.40 yd³
- Gross Power
- 51.0 hp
- Net Power
- 47.9 hp
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 10,725 lb |
|---|---|
| Tire Size | 405 / 70 R18 |
| Static Tipping Weight | 8,212 lb |
| Rear Axle Oscillation | 8 ° |
| Traction force | 8,588 lb |
Engine
| Engine Model | V2607-CR-TE4 |
|---|---|
| Displacement | 160 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 51.0 hp |
| Net Power | 47.9 hp |
| Number of Cylinders | 4 |
| Aspiration | Water-cooled |
| Engine Make | KUBOTA |
| Emissions Certification | Tier4 Final |
Hydraulic System
| Pump Flow Capacity | 17.8 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 4.2 s |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 100 in |
| Wheelbase | 79 in |
| Width Over Tires | 72 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 205 in |
| Hinge Pin - Max Height | 128 in |
| Articulation Angle | 40 ° |
| Tread | 55 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic transmission |
Fluid Capacities
| Fuel Tank | 18.5 gal |
|---|---|
| Hydraulic system | 15.1 gal |
| Hydraulic oil tank | 10.4 gal |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Breakout Force | 10,409 lb |
Electrical System
| Battery | 12 / 95 (V / Ah) |
|---|---|
| Starter | 12 / 2 (V / kW) |
