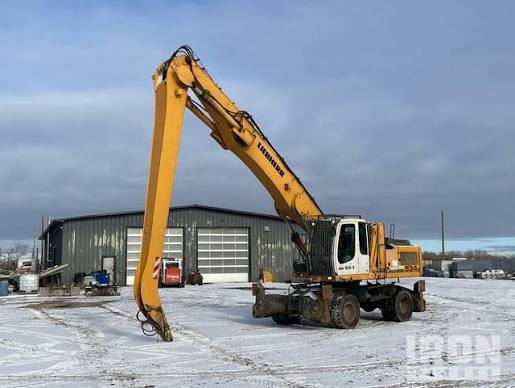

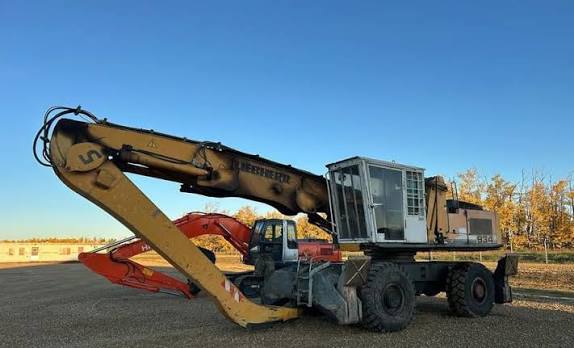

Liebherr A934C Excavator
1 / 5
Image 1 of 5
Image: plantandequipment.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment79,400 lb
Fuel Capacity153.3 gal
Hydraulic System Fluid Capacity155.9 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD 934 L
Displacement427 in³
Gross Power204.0 hp
Aspirationturbo-charged and after-cooled reduced emissions

Hydraulic System

Hydraulic System specifications
Pump Type2 x Liebherr variable flow swash plate pumps
Pump Capacity64.8 gal/min

Dimensions

Dimensions specifications
Ground Clearance11 in
Shipping Height134 in
Shipping Length442 in
Undercarriage Width119 in
Upperstructure Clearance59 in

Transmission

Transmission specifications
Max Speed12.5 mph

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 17.6m boom / 5m stick
Max Depth100 in
Max Height552 in
Max Reach Along Ground473 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 27.6m boom / 6m stick
Max Depth138 in
Max Height599 in
Max Reach Along Ground516 in

Boom/Stick Mat. Handler Option 3

Boom/Stick Mat. Handler Option 3 specifications
Boom/Stick Option (MAT) 37.6m boom / 5m stick and grapple model 70 C
Max Depth205 in
Max Height473 in
Max Reach Along Ground531 in

Wheel Undercarriage

Wheel Undercarriage specifications
Wheelbase119 in
Width w/ Stabilizers on Ground186 in
Tire Size12 – 20
