Liebherr

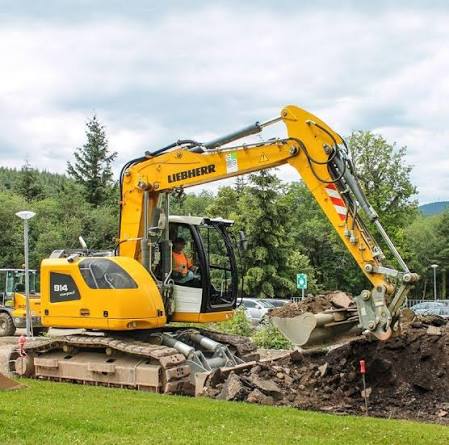

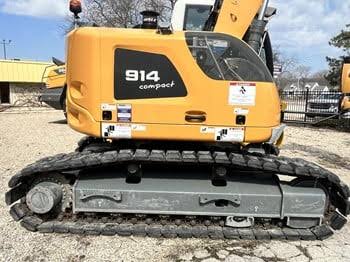

R914 COMPACT LITRONIC
- Operating Weight
- 36,376 lb
- Max Digging Depth
- 205 in
- Max Digging Depth
- 214 in
1 / 5
Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 36,376 lb |
|---|---|
| Hydraulic System Relief Valve Pressure | 5,076 psi |
Engine
| Engine Model | Deutz TCD3.6L4 |
|---|---|
| Displacement | 220 in³ |
| Power Measured @ | 1,800 rpm |
| Aspiration | Turbo-charged and after-coolerreduced emissions |
| Stroke | 5 in |
| Bore | 4 in |
| Emission Tier Level | Tier 4 Final |
| Air cleaner | Dry-type |
| Exhaust Gas Recirculation (EGR) | DOC Deutz |
| Horsepower, Net-ISO 9249 | 122.0 hp |
| Horsepower, Net-SAE J1349 | 121.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 104 in |
| Undercarriage Width | 148 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Max Travel Speed | 4.2 mph |
| Number of Carrier Rollers per Side | 43,679 |
| Drawbar Pull | 34,621 lb |
| Tail Swing Radius | 61 in |
Fluid Capacities
| Fuel Tank | 46.3 gal |
|---|---|
| Hydraulic system | 60.8 gal |
| Urea tank | 5.3 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 205 in |
|---|---|
| Max Reach Along Ground | 313 in |
| Max.Dumping Height | 239 in |
| Bucket Digging Force - SAE | 15,287 lb |
| Bucket Digging Force - ISO | 15,737 lb |
| Max. teeth height | 4,134 in |
| Breakout force - ISO | 17,985 lb |
| Breakout force - SAE | 15,287 lb |
Bucket
| Reference Bucket Capacity | 0.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 214 in |
|---|---|
| Max Reach Along Ground | 322 in |
| Max.Dumping Height | 243 in |
| Bucket Digging Force - SAE | 14,388 lb |
| Bucket Digging Force - ISO | 14,837 lb |
| Max. teeth height | 350 in |
| Breakout force-ISO | 17,985 lb |
| Breakout force-SAE | 20,008 lb |
Boom/Stick Excavator Option 3
| Max Digging Depth | 221 in |
|---|---|
| Max Reach Along Ground | 328 in |
| Max.Dumping Height | 248 in |
| Bucket Digging Force - SAE | 13,489 lb |
| Bucket Digging Force - ISO | 20,008 lb |
| Breakout force-ISO | 20,008 lb |
| Max. teeth height | 4,276 in |
| Breakout force-SAE | 17,985 lb |
Boom/Stick Excavator Option 4
| Max Digging Depth | 229 in |
|---|---|
| Max Reach Along Ground | 353 in |
| Max.Dumping Height | 269 in |
Electrical System
| Batteries | 2 x 135 Ah / 12 V volts |
|---|---|
| Alternator | — |
| Voltage | 24 V |
| Engine idling | Sensor controlled |
