Liebherr

R934C

Excavator

Operating Weight
68,350 lb
Max Digging Depth
233 in
Max Digging Depth
248 in
Net Power
203.0 hp
All excavators

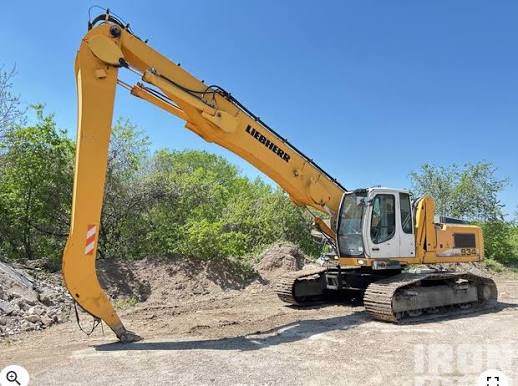

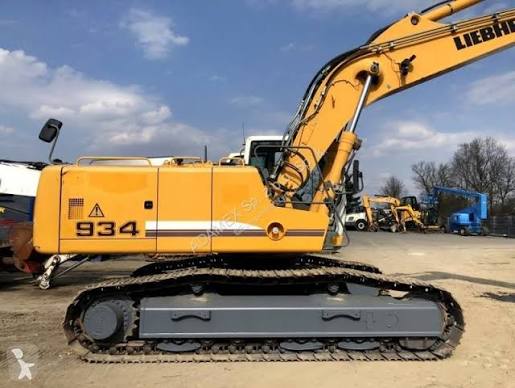

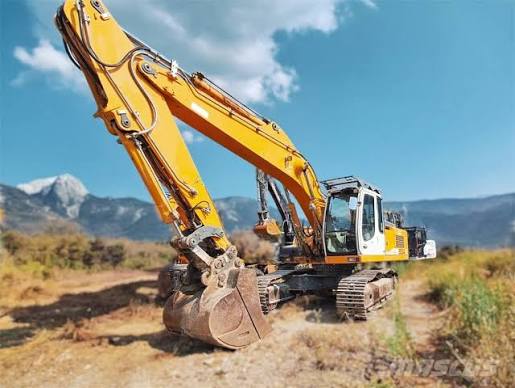

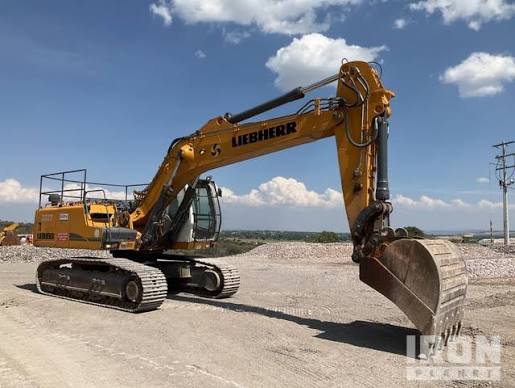

Liebherr R934C Excavator
1 / 5
Image 1 of 5
Image: bossmachinery.nl

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight68,350 lb
Fuel Capacity153.3 gal
Hydraulic Pump Flow Capacity64.8 gal/min
Hydraulic System Fluid Capacity145.3 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD 934 L
Displacement428 in³
Power Measured @1,800 rpm
Net Power203.0 hp
Aspirationturbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance20 in
Length of Track on Ground152 in
Tail Swing Radius121 in
Width to Outside of Tracks119 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Max Travel Speed3.2 mph
Shoe Size20 in
Number of Carrier Rollers per Side2
Drawbar Pull72,613 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth233 in
Max Reach Along Ground383 in
Max Loading Height258 in
Max Cutting Height398 in
Shipping Length of Unit414 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³
Maximum Bucket Capacity2.60 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth248 in
Max Cutting Height402 in
Max Loading Height272 in
Max Reach Along Ground396 in
Shipping Length of Unit408 in
Shipping Height of Unit124 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth272 in
Max Cutting Height417 in
Max Loading Height284 in
Max Reach Along Ground418 in
Shipping Length of Unit410 in
Shipping Height of Unit124 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth304 in
Max Cutting Height433 in
Max Reach Along Ground448 in
Max Loading Height300 in
Shipping Length of Unit411 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth251 in
Max Reach Along Ground410 in
Max Cutting Height463 in
Max Loading Height335 in
Shipping Height of Unit124 in
Shipping Length of Unit442 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth264 in
Max Reach Along Ground422 in
Max Cutting Height473 in
Max Loading Height335 in
Shipping Length of Unit435 in
Shipping Height of Unit124 in
