Liebherr

R950 TUNNEL Litronic

Excavator

Operating Weight
99,870 lb
All excavators

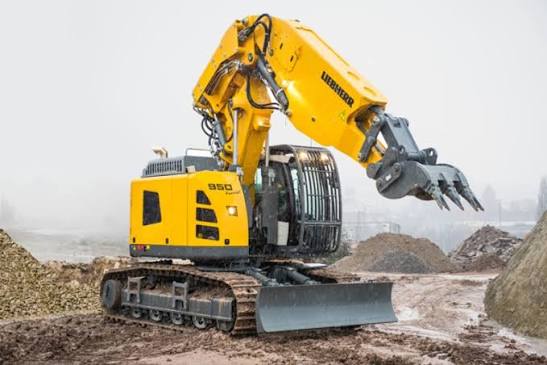

Liebherr R950 TUNNEL Litronic Excavator
1 / 5
Image 1 of 5
Image: steelwrist.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight99,870 lb

Engine

Engine specifications
Engine ModelD944 A7
Displacement488 in³
Power Measured @1,800 rpm
Bore5 in
Stroke6 in
Emission Tier LevelTier 4 Final
Air cleanerDry-type
Cooling systemwater-cooled
Horsepower, Net-ISO 9249204.0 hp
Horsepower, Net-SAE J1349201.0 hp

Hydraulic System

Hydraulic System specifications
system pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab110 in
Wheelbase163 in
Undercarriage Width109 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Max Travel Speed2.8 mph
Number of Carrier Rollers per Side2
Drawbar Pull62,947 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank112.0 gal
Hydraulic system137.0 gal

Electrical System

Electrical System specifications
Batteries2 x 180 Ah / 12 V volts
Alternator—
Voltage24 V
Engine idlingSensor controlled
