Liebherr

R956 Litronic

Excavator

Operating Weight
99,870 lb
Max Digging Depth
282 in
Max Digging Depth
304 in
All excavators

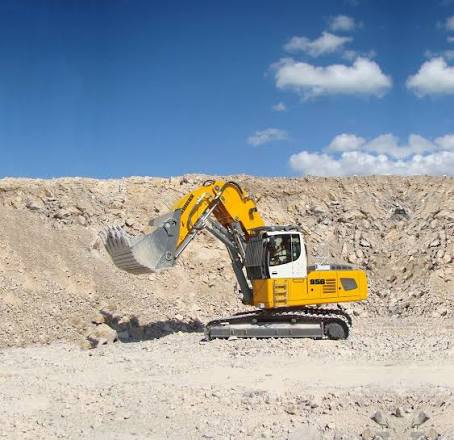

Liebherr R956 Litronic Excavator
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight99,870 lb

Engine

Engine specifications
Engine ModelD946 A7
Displacement729 in³
Power Measured @1,800 rpm
Torque Measured @1,000 rpm
Max Torque1,682 lb-ft
Bore5 in
Stroke6 in
Emission Tier LevelTier 4 Final
Air cleanerDry-type
Cooling systemwater-cooled
Horsepower, Net-ISO 9249326.0 hp
Horsepower, Net-SAE J1349322.0 hp

Hydraulic System

Hydraulic System specifications
system pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab117 in
Wheelbase174 in
Undercarriage Width144 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side10
Max Travel Speed3.0 mph
Number of Carrier Rollers per Side3
Drawbar Pull100,265 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank203.0 gal
Hydraulic system196.0 gal
Urea tank25.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth282 in
Max.Dumping Height282 in
Maximum Reach at Ground Level438 in
Max. teeth height417 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth304 in
Max.Dumping Height278 in
Max. teeth height428 in
Maximum Reach at Ground Level38 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth340 in
Max.Dumping Height304 in
Max. teeth height445 in

Electrical System

Electrical System specifications
Batteries2 x 180 Ah / 12 V volts
Alternator—
Voltage24 V
Engine idlingSensor controlled
