Liebherr

R960 DEMOLITION Litronic

Excavator

Operating Weight
99,870 lb
Max Digging Depth
245 in
Max Digging Depth
267 in
All excavators

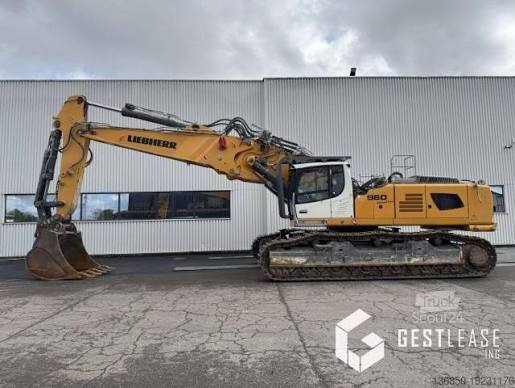

Liebherr R960 DEMOLITION Litronic Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight99,870 lb

Engine

Engine specifications
Engine ModelD946 A7
Displacement729 in³
Power Measured @1,800 rpm
Torque Measured @1,000 rpm
Max Torque1,682 lb-ft
Stroke6 in
Bore5 in
Emission Tier LevelTier 4 Final
Air cleanerDry-type
Cooling systemwater-cooled
Horsepower, Net-ISO 9249340.0 hp
Horsepower, Net-SAE J1349335.0 hp

Hydraulic System

Hydraulic System specifications
system pressure5,076 psi

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab124 in
Wheelbase222 in
Undercarriage Width181 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side11
Max Travel Speed2.0 mph
Number of Carrier Rollers per Side2
Drawbar Pull126,567 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank203.0 gal
Hydraulic system357.0 gal
Urea tank25.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth245 in
Max.Dumping Height445 in
Maximum Reach at Ground Level478 in
Max. teeth height481 in
Breakout force - ISO70,330 lb
Digging force - ISO56,880 lb
Breakout force - SAE60,410 lb

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth267 in
Max.Dumping Height467 in
Max. teeth height617 in
Maximum Reach at Ground Level45 in
Breakout force-ISO70,330 lb
Digging force - ISO48,720 lb
Breakout force-SAE60,410 lb

Electrical System

Electrical System specifications
Batteries2 x 180 Ah / 12 V volts
Alternator—
Voltage24 V
Engine idlingSensor controlled
