Liebherr

R964C

Excavator

Operating Weight
144,800 lb
Max Digging Depth
285 in
Max Digging Depth
318 in
Net Power
434.0 hp
All excavators

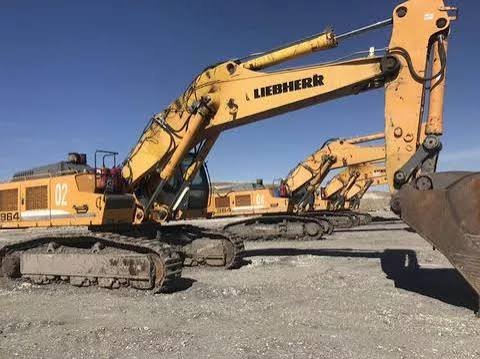

Liebherr R964C Excavator
1 / 5
Image 1 of 5
Image: flickr.com

Specifications

92 data points

Operating Specifications

Operating Specifications specifications
Operating Weight144,800 lb
Fuel Capacity330.3 gal
Hydraulic Pump Flow Capacity108.4 gal/min
Hydraulic System Fluid Capacity277.4 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Swing Speed6 rpm

Engine

Engine specifications
Displacement986 in³
Power Measured @1,800 rpm
Gross Power434.0 hp
Net Power434.0 hp
Number of Cylinders8

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab144 in
Length of Track on Ground172 in
Tail Swing Radius165 in
Width to Outside of Tracks163 in
Upper Structure Ground Clearance57 in
Length of Tracks216 in
Height of Tracks54 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.6 mph
Shoe Size20 in
Drawbar Pull124,319 lb
Number of Upper Rollers2
Loading Shovel Operating Weight167,000 lb
Loading Shovel Shoe Width20 in
Number of Lower Rollers8
Backhoe Shoe Width 120 in
Backhoe Operating Weight - Shoe 1144,844 lb
Backhoe Shoe Width 224 in
Backhoe Operating Weight - Shoe 2146,277 lb
Backhoe Shoe Width 330 in
Backhoe Operating Weight - Shoe 3149,143 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth285 in
Max Reach Along Ground455 in
Max Loading Height306 in
Max Cutting Height455 in
Shipping Length of Unit504 in
Shipping Height of Unit154 in

Bucket

Bucket specifications
Reference Bucket Capacity5.30 yd³
Maximum Bucket Capacity6.61 yd³
Minimum Bucket Capacity3.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth318 in
Max Cutting Height472 in
Max Loading Height322 in
Max Reach Along Ground485 in
Shipping Length of Unit503 in
Shipping Height of Unit166 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth349 in
Max Cutting Height487 in
Max Loading Height335 in
Max Reach Along Ground516 in
Shipping Length of Unit499 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth328 in
Max Cutting Height491 in
Max Reach Along Ground504 in
Max Loading Height341 in
Shipping Length of Unit558 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth359 in
Max Reach Along Ground534 in
Max Cutting Height504 in
Max Loading Height355 in
Shipping Height of Unit168 in
Shipping Length of Unit552 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth390 in
Max Reach Along Ground565 in
Max Cutting Height521 in
Max Loading Height371 in
Shipping Length of Unit552 in
Shipping Height of Unit172 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth119 in
Max Cutting Height374 in
Max Dump Height285 in
Max Dig Reach347 in
Loading ShovelShovel Attachment

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth285 in
Max Cutting Height455 in
Max Dump Height306 in
Max Reach on Ground455 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth318 in
Max Cutting Height472 in
Max Dump Height322 in
Max Reach on Ground485 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth349 in
Max Cutting Height487 in
Max Dump Height335 in
Max Reach on Ground516 in

Backhoe Boom / Stick 4

Backhoe Boom / Stick 4 specifications
Max Dig Depth328 in
Max Cutting Height491 in
Max Dump Height341 in
Max Reach on Ground497 in
