Liebherr
Kobelco
SK260LC-9
Excavator
63 specifications
1 / 5

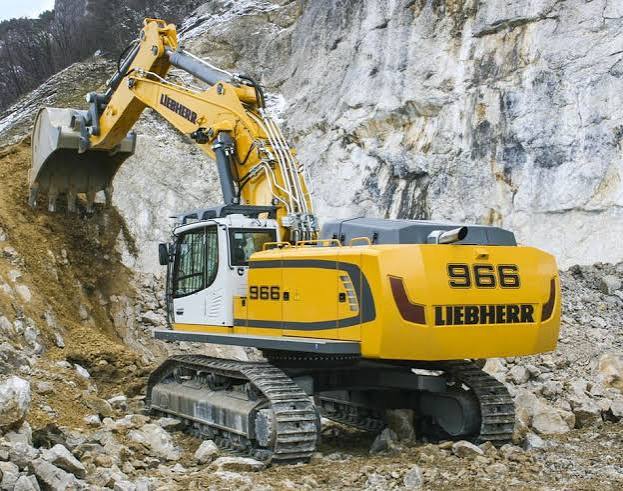

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 171,960 lb |
|---|
Engine
| Engine Model | D9508 A7 SCR |
|---|---|
| Displacement | 986 in³ |
| Power Measured @ | 1,800 rpm |
| Torque Measured @ | 1,100 rpm |
| Max Torque | 2,028 lb-ft |
| Stroke | 6 in |
| Bore | 5 in |
| Emission Tier Level | Tier 4 Final |
| Air cleaner | Dry-type |
| Cooling system | water-cooled |
| Horsepower, Net-ISO 9249 | 435.0 hp |
| Horsepower, Net-SAE J1349 | 429.0 hp |
Hydraulic System
| system pressure | 5,076 psi |
|---|
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 180 in |
| Undercarriage Width | 159 in |
Undercarriage
| Number of Track Rollers per Side | 9 |
|---|---|
| Max Travel Speed | 2.5 mph |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 107,459 lb |
Fluid Capacities
| Fuel Tank | 301.0 gal |
|---|---|
| Hydraulic system | 243.0 gal |
| Urea tank | 48.0 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 342 in |
|---|---|
| Max.Dumping Height | 353 in |
| Maximum Reach at Ground Level | 523 in |
| Max. teeth height | 504 in |
| Breakout force - ISO | 79,590 lb |
| Digging force - ISO | 63,270 lb |
Bucket
| Maximum Bucket Capacity | 7.19 yd³ |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 357 in |
|---|---|
| Max.Dumping Height | 349 in |
| Max. teeth height | 514 in |
| Maximum Reach at Ground Level | 45 in |
| Breakout force-ISO | 79,590 lb |
| Digging force - ISO | 58,420 lb |
Boom/Stick Excavator Option 3
| Max Digging Depth | 389 in |
|---|---|
| Max.Dumping Height | 374 in |
| Breakout force-ISO | 79,590 lb |
| Max. teeth height | 528 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 414 in |
|---|---|
| Max.Dumping Height | 396 in |
Electrical System
| Batteries | 2 x 180 Ah / 12 V volts |
|---|---|
| Alternator | — |
| Voltage | 24 V |
| Engine idling | Sensor controlled |
