Link Belt

240 LX Road Builder

Excavator

Operating Weight
66,509 lb
Max Digging Depth
263 in
Max Digging Depth
219 in
Net Power
162.0 hp
All excavators

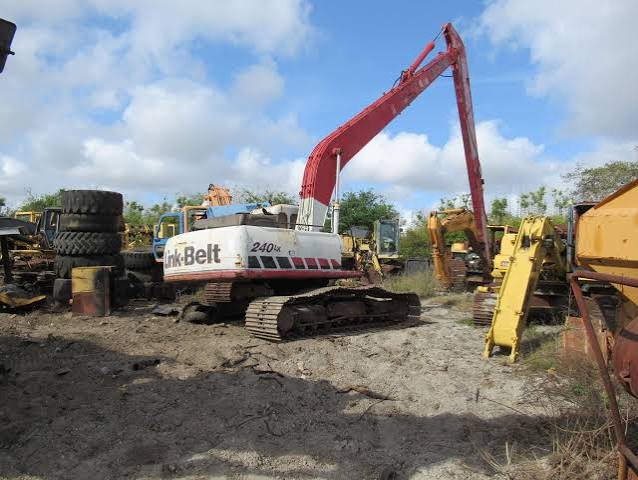

Link Belt 240 LX Road Builder Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight66,509 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity112.0 gal/min
Hydraulic System Fluid Capacity59.5 gal
Hydraulic System Relief Valve Pressure4,970 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity7.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelBB-6BG1T
Displacement396 in³
Power Measured @2,150 rpm
Net Power162.0 hp
AspirationTurbocharged
Torque Measured @1,800 rpm
Max Torque415 lb-ft

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab131 in
Length of Track on Ground155 in
Tail Swing Radius117 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance56 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge117 in
Number of Track Rollers per Side8
Max Travel Speed3.0 mph
Shoe Size28 in
Number of Shoes per Side47
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth263 in
Max Reach Along Ground402 in
Max Loading Height278 in
Max Vertical Wall Digging Depth235 in
Max Cutting Height400 in
Shipping Length of Unit385 in
Shipping Height of Unit131 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth219 in
Max Vertical Wall Digging Depth180 in
Max Cutting Height451 in
Max Loading Height326 in
Max Reach Along Ground402 in
Shipping Length of Unit385 in
Shipping Height of Unit131 in
