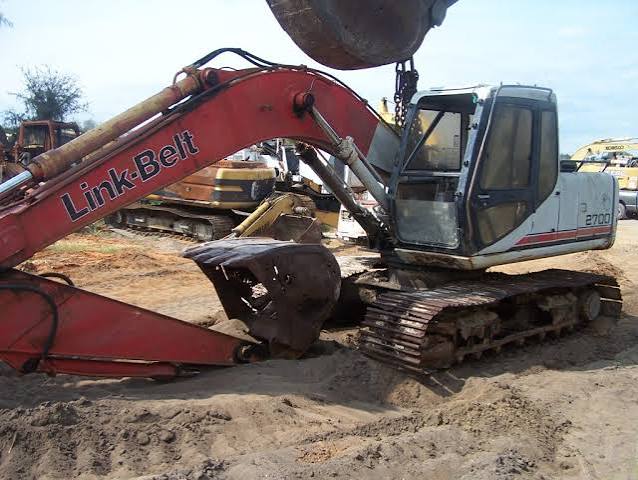

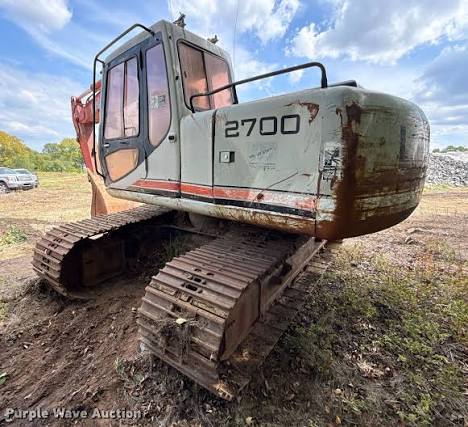

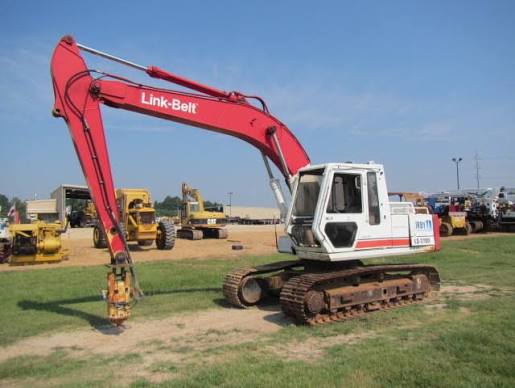

Link Belt
2700 Quantum
- Operating Weight
- 35,240 lb
- Max Digging Depth
- 241 in
- Max Digging Depth
- 254 in
- Net Power
- 100.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 35,240 lb |
|---|---|
| Fuel Capacity | 63.5 gal |
| Hydraulic Pump Flow Capacity | 72.0 gal/min |
| Hydraulic System Fluid Capacity | 37.6 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.2 gal |
| Cooling System Fluid Capacity | 4.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | A-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,300 rpm |
| Net Power | 100.0 hp |
| Aspiration | Turbocharged and Aftercooled |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 255 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 91 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 352 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 207 in |
| Max Cutting Height | 362 in |
| Shipping Length of Unit | 328 in |
| Shipping Height of Unit | 115 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 254 in |
|---|---|
| Max Vertical Wall Digging Depth | 229 in |
| Max Cutting Height | 378 in |
| Max Loading Height | 274 in |
| Max Reach Along Ground | 367 in |
| Shipping Length of Unit | 331 in |
| Shipping Height of Unit | 122 in |
