Link Belt

290 LX Road Builder

Excavator

Operating Weight
71,266 lb
Max Digging Depth
272 in
Max Digging Depth
226 in
Net Power
177.0 hp
All excavators

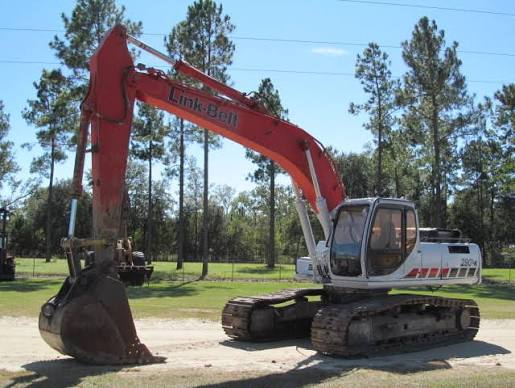

Link Belt 290 LX Road Builder Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight71,266 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity116.8 gal/min
Hydraulic System Fluid Capacity63.5 gal
Hydraulic System Relief Valve Pressure4,970 psi
Engine Oil Capacity6.4 gal
Cooling System Fluid Capacity7.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelCC-6BG1TC
Displacement396 in³
Power Measured @2,200 rpm
Net Power177.0 hp
AspirationTurbocharged with Intercooler
Torque Measured @1,800 rpm
Max Torque443 lb-ft

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab132 in
Length of Track on Ground158 in
Tail Swing Radius126 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance56 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge117 in
Number of Track Rollers per Side8
Max Travel Speed2.5 mph
Shoe Size28 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth272 in
Max Reach Along Ground415 in
Max Loading Height292 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height410 in
Shipping Length of Unit396 in
Shipping Height of Unit132 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth226 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height465 in
Max Loading Height340 in
Max Reach Along Ground415 in
Shipping Length of Unit396 in
Shipping Height of Unit132 in
