Link Belt

290 X2 Long Front

Excavator

Operating Weight
65,700 lb
Max Digging Depth
557 in
Net Power
207.0 hp
All excavators

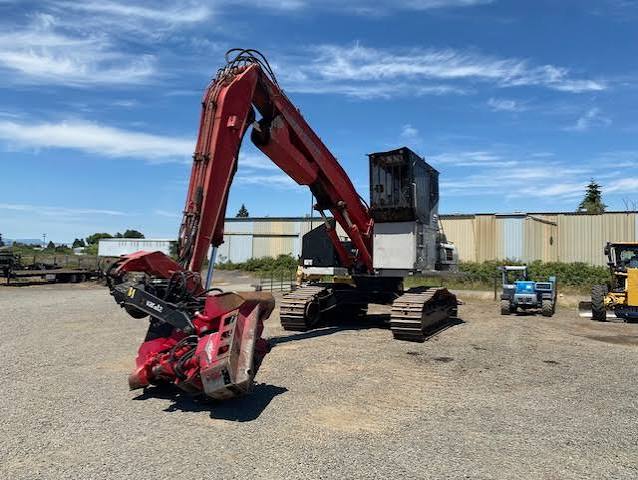

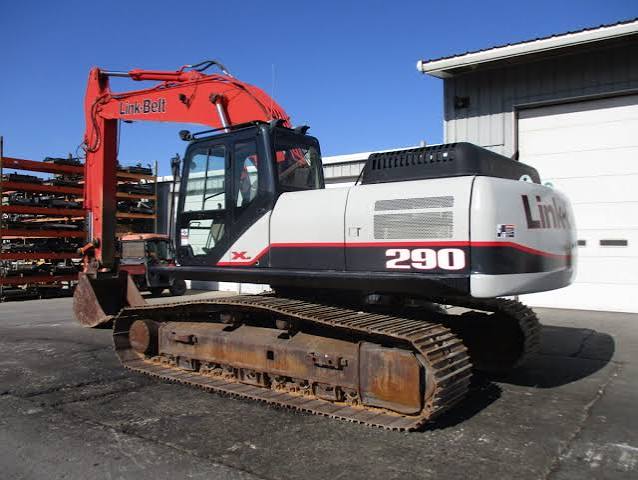

Link Belt 290 X2 Long Front Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,700 lb
Fuel Capacity118.9 gal
Hydraulic Pump Flow Capacity128.4 gal/min
Hydraulic System Fluid Capacity79.3 gal
Hydraulic System Relief Valve Pressure4,970 psi
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity7.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6HK1XYSS
Displacement476 in³
Power Measured @1,800 rpm
Net Power207.0 hp
AspirationTurbocharged with Intercooler
Torque Measured @1,500 rpm
Max Torque627 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab126 in
Length of Track on Ground157 in
Tail Swing Radius125 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge103 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size32 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth557 in
Max Reach Along Ground724 in
Max Loading Height503 in
Max Cutting Height585 in
Shipping Length of Unit595 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
