Link Belt

370 LX Road Builder

Excavator

Operating Weight
97,891 lb
Max Digging Depth
277 in
Max Digging Depth
235 in
Net Power
247.0 hp
All excavators

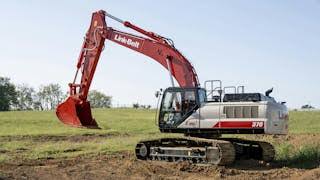

Link Belt 370 LX Road Builder Excavator
1 / 5
Image 1 of 5
Image: en.lbxco.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight97,891 lb
Fuel Capacity153.3 gal
Hydraulic Pump Flow Capacity150.0 gal/min
Hydraulic System Fluid Capacity92.5 gal
Hydraulic System Relief Valve Pressure4,970 psi
Engine Oil Capacity8.8 gal
Cooling System Fluid Capacity11.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.0 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAA-6HK1XQB
Displacement475 in³
Power Measured @2,000 rpm
Net Power247.0 hp
AspirationTurbocharged with Intercooler
Torque Measured @1,600 rpm
Max Torque687 lb-ft

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab138 in
Length of Track on Ground173 in
Tail Swing Radius138 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance60 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge117 in
Number of Track Rollers per Side9
Max Travel Speed2.6 mph
Shoe Size28 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth277 in
Max Reach Along Ground431 in
Max Loading Height298 in
Max Vertical Wall Digging Depth252 in
Max Cutting Height421 in
Shipping Length of Unit435 in
Shipping Height of Unit138 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth235 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height476 in
Max Loading Height347 in
Max Reach Along Ground431 in
Shipping Length of Unit435 in
Shipping Height of Unit138 in
