Link Belt

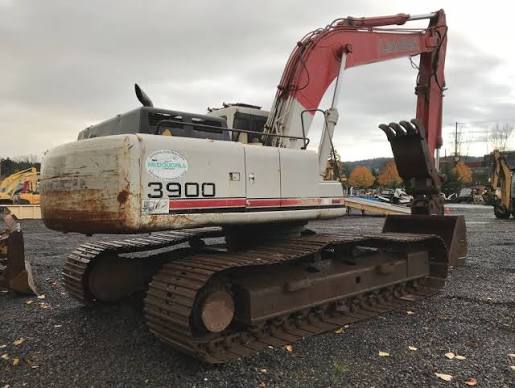

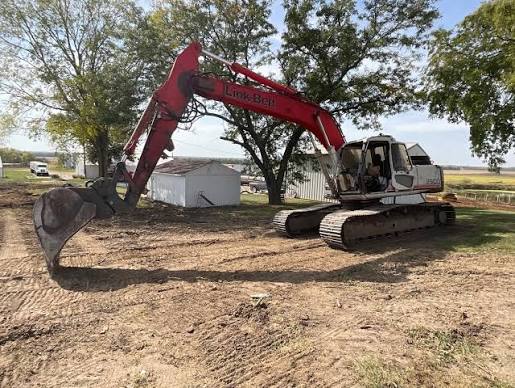

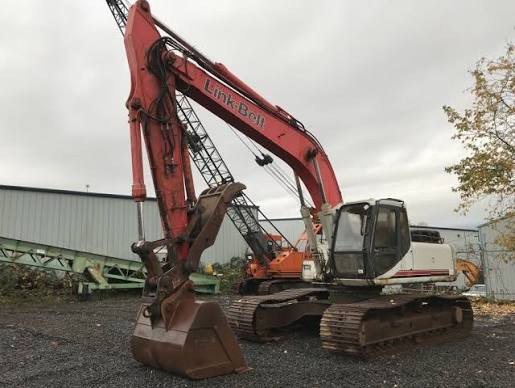

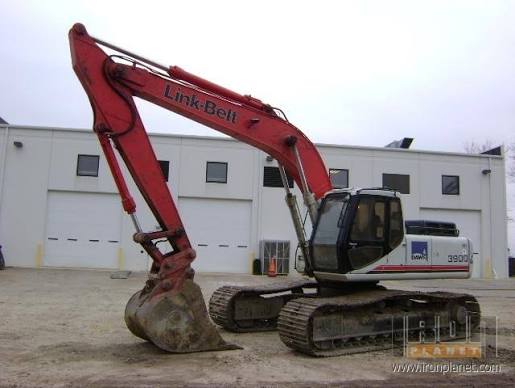

3900 QUANTUM
- Operating Weight
- 62,900 lb
- Max Digging Depth
- 283 in
- Max Digging Depth
- 306 in
- Net Power
- 178.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 62,900 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 112.0 gal/min |
| Hydraulic System Fluid Capacity | 58.2 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 6CT8.3 |
|---|---|
| Displacement | 506 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 178.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,450 rpm |
| Max Torque | 516 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 155 in |
| Tail Swing Radius | 119 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |

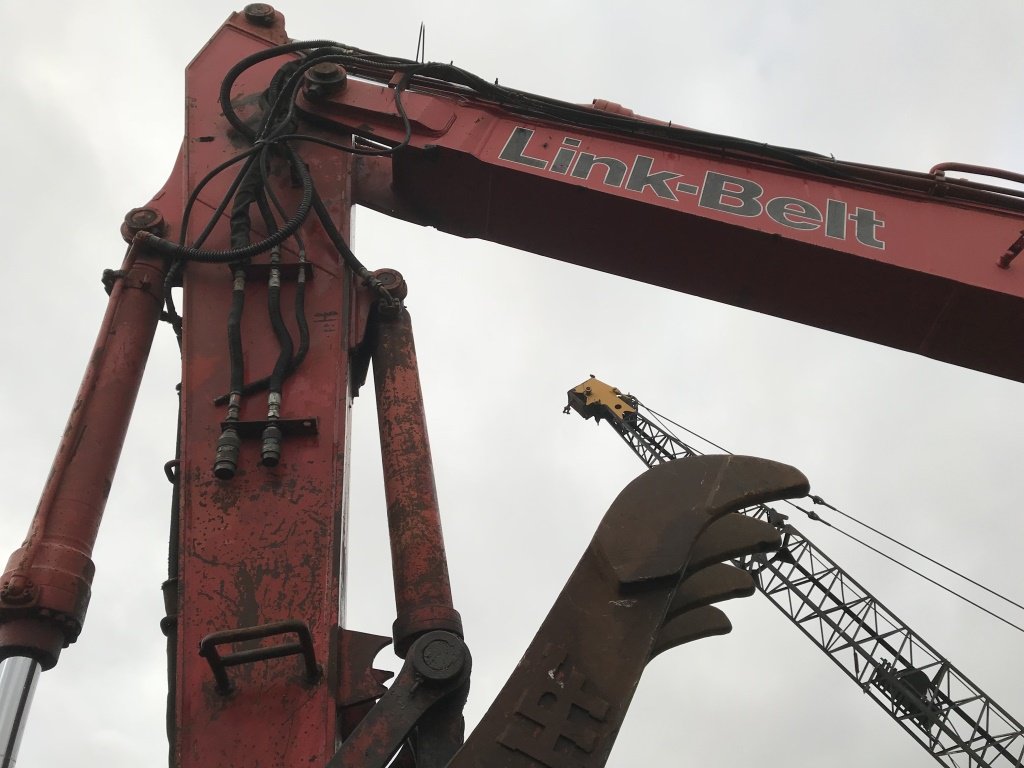

Boom/Stick Excavator Option 1
| Max Digging Depth | 283 in |
|---|---|
| Max Reach Along Ground | 418 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 253 in |
| Max Cutting Height | 401 in |
| Shipping Length of Unit | 395 in |
| Shipping Height of Unit | 132 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.30 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 306 in |
|---|---|
| Max Vertical Wall Digging Depth | 276 in |
| Max Cutting Height | 403 in |
| Max Loading Height | 283 in |
| Max Reach Along Ground | 437 in |
| Shipping Length of Unit | 395 in |
| Shipping Height of Unit | 146 in |
