Link Belt

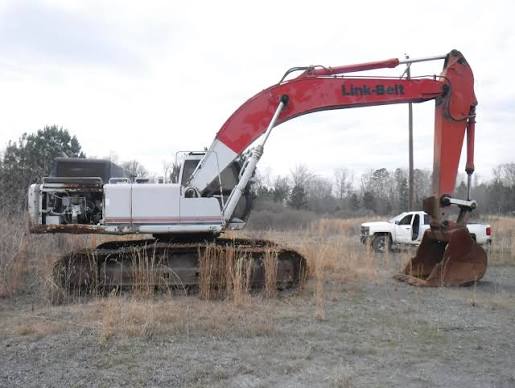

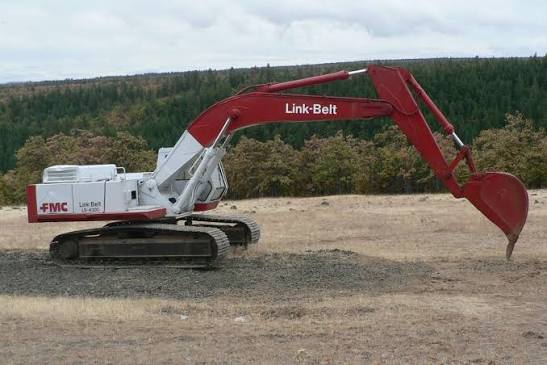

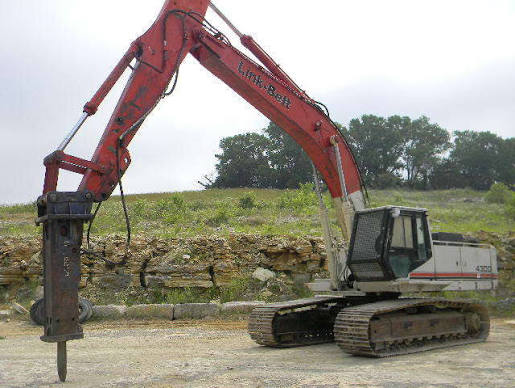

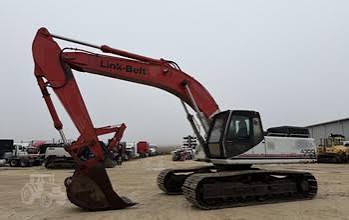

4300 Quantum
- Operating Weight
- 73,570 lb
- Max Digging Depth
- 269 in
- Max Digging Depth
- 292 in
- Net Power
- 240.0 hp
1 / 5
Image 1 of 5
Specifications
71 data points
Operating Specifications
| Operating Weight | 73,570 lb |
|---|---|
| Operating Weight w/o Attachment | 91,040 lb |
| Fuel Capacity | 153.3 gal |
| Hydraulic Pump Flow Capacity | 142.0 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 4,620 psi |
| Engine Oil Capacity | 9.0 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.4 gal |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | MII-C265 |
|---|---|
| Displacement | 661 in³ |
| Power Measured @ | 1,700 rpm |
| Net Power | 240.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 900 lb-ft |
Hydraulic System
| Pump Type | 2x piston pumps |
|---|---|
| Pump Capacity | 142.0 gal/min |
| Relief Pressure | 4,620 psi |
Dimensions
| Height - Top of Cab | 124 in |
|---|---|
| Length of Track on Ground | 155 in |
| Tail Swing Radius | 128 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 48 in |
| Undercarriage Width | 144 in |
Transmission
| Max Speed | 3.1 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 269 in |
|---|---|
| Max Reach Along Ground | 409 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 221 in |
| Max Cutting Height | 394 in |
| Shipping Length of Unit | 432 in |
| Shipping Height of Unit | 141 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.80 yd³ |
| Minimum Bucket Capacity | 1.20 yd³ |
Swing Mechanism
| Swing Torque | 73,699 lb-ft |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 250 in |
| Max Cutting Height | 406 in |
| Max Loading Height | 283 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 428 in |
| Shipping Height of Unit | 132 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 323 in |
|---|---|
| Max Cutting Height | 417 in |
| Max Loading Height | 294 in |
| Max Vertical Wall Digging Depth | 281 in |
| Max Reach Along Ground | 461 in |
| Shipping Length of Unit | 432 in |
| Shipping Height of Unit | 151 in |
Boom/Stick Mat. Handler Option 1
| Boom/Stick Option (MAT) 1 | 46'0"" 2 piece |
|---|---|
| Max Depth | 204 in |
| Max Height | 600 in |
| Max Reach Along Ground | 540 in |
Track Undercarriage
| Shoe Size | 28 in |
|---|---|
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 49 |
