Link Belt

5800 Quantum

Excavator

Operating Weight
99,800 lb
Max Digging Depth
272 in
Max Digging Depth
306 in
Net Power
300.0 hp
All excavators

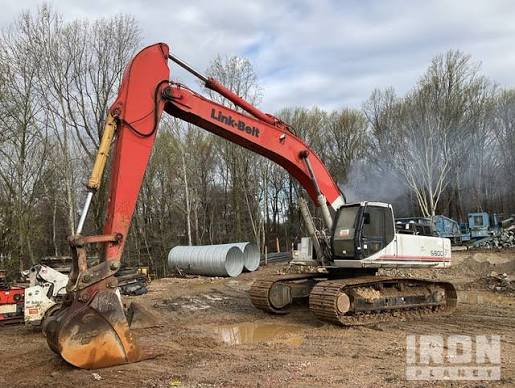

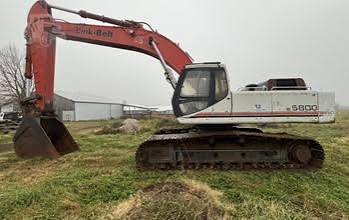

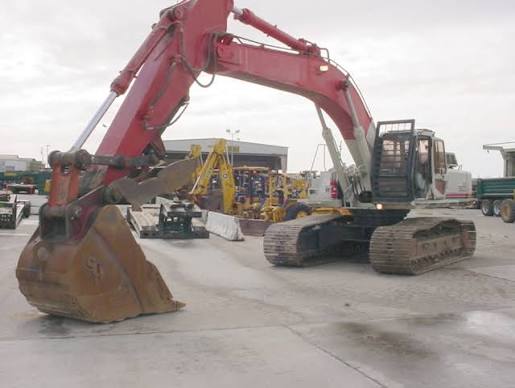

Link Belt 5800 Quantum Excavator
1 / 5
Image 1 of 5
Image: liveauctionworld.com

Specifications

60 data points

Operating Specifications

Operating Specifications specifications
Operating Weight99,800 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity180.0 gal/min
Hydraulic System Fluid Capacity118.9 gal
Hydraulic System Relief Valve Pressure4,620 psi
Engine Oil Capacity9.0 gal
Cooling System Fluid Capacity7.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity5.6 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelMIIC320-1.5c
Displacement661 in³
Power Measured @2,000 rpm
Net Power300.0 hp
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque910 lb-ft

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab131 in
Length of Track on Ground168 in
Tail Swing Radius142 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge108 in
Number of Track Rollers per Side9
Max Travel Speed3.1 mph
Shoe Size36 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth272 in
Max Reach Along Ground432 in
Max Loading Height298 in
Max Vertical Wall Digging Depth219 in
Max Cutting Height426 in
Shipping Length of Unit473 in
Shipping Height of Unit141 in

Bucket

Bucket specifications
Reference Bucket Capacity2.00 yd³
Maximum Bucket Capacity4.00 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth251 in
Max Cutting Height435 in
Max Loading Height307 in
Max Reach Along Ground462 in
Shipping Length of Unit472 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth331 in
Max Cutting Height443 in
Max Loading Height313 in
Max Vertical Wall Digging Depth275 in
Max Reach Along Ground483 in
Shipping Length of Unit473 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth386 in
Max Cutting Height461 in
Max Reach Along Ground535 in
Max Loading Height331 in
Max Vertical Wall Dig Depth331 in
Shipping Length of Unit465 in
