Link Belt

700 LX

Excavator

Operating Weight
153,300 lb
Max Digging Depth
311 in
Max Digging Depth
331 in
Net Power
425.0 hp
All excavators

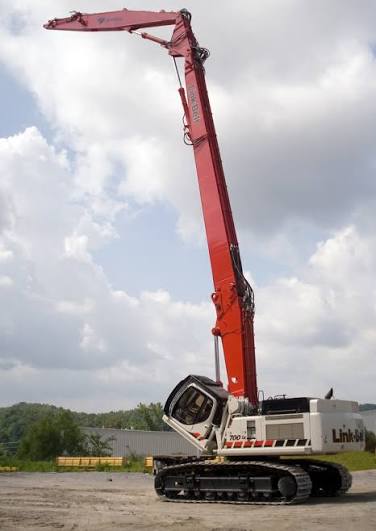

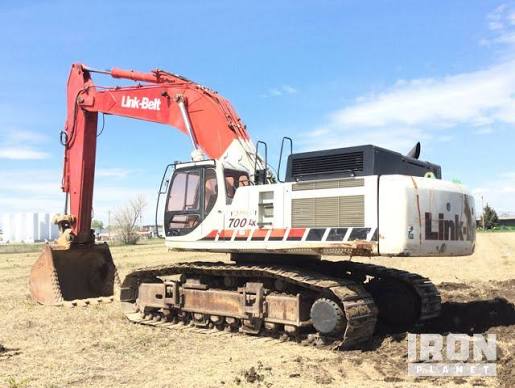

Link Belt 700 LX Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

85 data points

Operating Specifications

Operating Specifications specifications
Operating Weight153,300 lb
Operating Weight w/o Attachment147,880 lb
Fuel Capacity237.8 gal
Hydraulic Pump Flow Capacity232.4 gal/min
Hydraulic System Fluid Capacity171.8 gal
Hydraulic System Relief Valve Pressure4,978 psi
Engine Oil Capacity13.8 gal
Cooling System Fluid Capacity29.6 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6WG1X-S
Displacement958 in³
Power Measured @1,800 rpm
Net Power425.0 hp
Number of Cylinders6
AspirationTurbocharged with Intercooler
Torque Measured @1,500 rpm
Max Torque1,460 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Type2x Piston Pumps
Pump Capacity232.4 gal/min
Relief Pressure4,978 psi

Dimensions

Dimensions specifications
Ground Clearance33 in
Length of Track on Ground186 in
Tail Swing Radius157 in
Width to Outside of Tracks165 in
Removal Counterweight Clearance60 in
Shipping Height170 in
Shipping Length529 in
Undercarriage Width165 in
Upperstructure Clearance60 in

Transmission

Transmission specifications
Max Speed2.5 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge128 in
Number of Track Rollers per Side8
Max Travel Speed2.5 mph
Shoe Size36 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth311 in
Max Reach Along Ground497 in
Max Loading Height329 in
Max Vertical Wall Digging Depth270 in
Max Cutting Height489 in
Shipping Length of Unit522 in
Shipping Height of Unit173 in

Bucket

Bucket specifications
Reference Bucket Capacity2.90 yd³
Maximum Bucket Capacity4.90 yd³
Minimum Bucket Capacity2.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Torque6 lb-ft

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth331 in
Max Vertical Wall Digging Depth271 in
Max Cutting Height470 in
Max Loading Height317 in
Max Reach Along Ground509 in
Shipping Length of Unit524 in
Shipping Height of Unit170 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth354 in
Max Cutting Height475 in
Max Loading Height322 in
Max Vertical Wall Digging Depth291 in
Max Reach Along Ground528 in
Shipping Length of Unit524 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth389 in
Max Cutting Height500 in
Max Reach Along Ground564 in
Max Loading Height343 in
Max Vertical Wall Dig Depth341 in
Shipping Length of Unit520 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth283 in
Max Reach Along Ground451 in
Max Cutting Height439 in
Max Loading Height277 in
Max Vertical Wall Dig Depth202 in

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 155'0"" (16760mm) 2 Piece boom
Max Depth240 in
Max Height720 in
Max Reach Along Ground648 in

Track Undercarriage

Track Undercarriage specifications
Shoe Size36 in
Number of Track Rollers per Side8
Length of Track on Ground186 in
Number of Shoes per Side47
Track Gauge128 in
