Link Belt

8000 Quantum

Excavator

Operating Weight
176,400 lb
Max Digging Depth
277 in
Max Digging Depth
316 in
Net Power
438.0 hp
All excavators

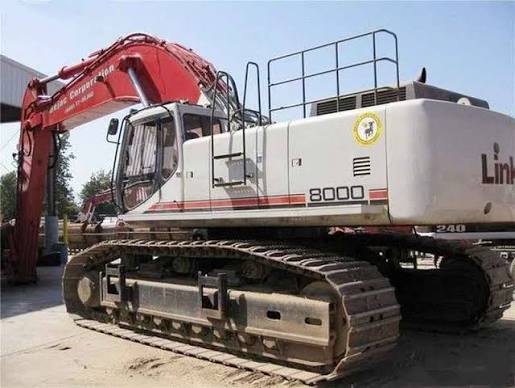

Link Belt 8000 Quantum Excavator
1 / 5
Image 1 of 5
Image: en.lbxco.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight176,400 lb
Fuel Capacity237.8 gal
Hydraulic Pump Flow Capacity264.2 gal/min
Hydraulic System Fluid Capacity190.3 gal
Hydraulic System Relief Valve Pressure4,977 psi
Engine Oil Capacity10.7 gal
Cooling System Fluid Capacity24.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity7.2 gal
Alternator Supplied Amperage75 A

Engine

Engine specifications
Engine ModelN14-C460-1.5c
Displacement855 in³
Power Measured @1,800 rpm
Net Power438.0 hp
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque1,462 lb-ft

Dimensions

Dimensions specifications
Ground Clearance36 in
Length of Track on Ground200 in
Tail Swing Radius161 in
Width to Outside of Tracks166 in
Removal Counterweight Clearance64 in

Undercarriage

Undercarriage specifications
Ground Pressure14 psi
Track Gauge137 in
Number of Track Rollers per Side9
Max Travel Speed2.6 mph
Shoe Size30 in
Number of Shoes per Side51
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth277 in
Max Reach Along Ground473 in
Max Loading Height311 in
Max Vertical Wall Digging Depth168 in
Max Cutting Height463 in
Shipping Length of Unit512 in
Shipping Height of Unit199 in

Bucket

Bucket specifications
Reference Bucket Capacity4.00 yd³
Maximum Bucket Capacity6.00 yd³
Minimum Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth316 in
Max Vertical Wall Digging Depth252 in
Max Cutting Height512 in
Max Loading Height350 in
Max Reach Along Ground524 in
Shipping Length of Unit554 in
Shipping Height of Unit187 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth343 in
Max Cutting Height509 in
Max Loading Height352 in
Max Vertical Wall Digging Depth254 in
Max Reach Along Ground546 in
Shipping Length of Unit554 in
Shipping Height of Unit187 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth373 in
Max Cutting Height535 in
Max Reach Along Ground577 in
Max Loading Height374 in
Max Vertical Wall Dig Depth305 in
Shipping Length of Unit554 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth420 in
Max Reach Along Ground628 in
Max Cutting Height575 in
Max Loading Height410 in
Max Vertical Wall Dig Depth362 in
Shipping Height of Unit187 in
Shipping Length of Unit554 in
