Link Belt

HSP-8018

Rough Terrain Crane

Operating Weight
45,989 lb
Max Speed - Forward
19.4 mph
Gross Power
130.0 hp
All rough terrain cranes

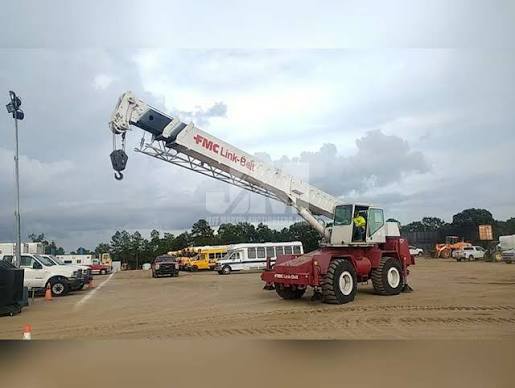

Link Belt HSP-8018 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,989 lb
Fuel Capacity75.0 gal
Tire Size20.5 x 25
Operating Voltage12 V
Hydraulic System Fluid Capacity100.0 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelGM 8.2N
Displacement500 in³
Power Measured @2,800 rpm
Gross Power130.0 hp
Number of Cylinders8
Max Torque330 lb-ft
Bore4 in
Stroke5 in
Crankcase capacity3.0 gal

Hydraulic System

Hydraulic System specifications
Maximum operating pressure2,800 psi

Dimensions

Dimensions specifications
Wheelbase121 in
Transport Width106 in
Transport Height133 in
Transport Length476 in
Width w/ Outriggers Extended222 in
Upper Structure Tail Swing Radius122 in
Carrier/Base Length264 in

Transmission

Transmission specifications
Max Speed - Forward19.4 mph
Number of Forward Gears8
Number of Reverse Gears2
Transmission TypeAllison

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib844 in
Min Height @ Max Raise Angle346 in
Max Elevating Angle80 °
Number of Sections3
Swing Speed3 rpm
