RT625
Rough Terrain Crane
38 specifications
1 / 5

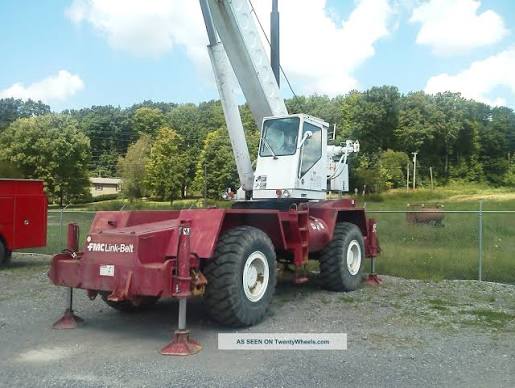

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 52,272 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| Tire Size | 20.5 x 25 |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 110.0 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | 6BT5.9 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 152.0 hp |
| Number of Cylinders | 6 |
| Max Torque | 400 lb-ft |
| Engine Make | Cummins |
| Stroke | 5 in |
| Bore | 4 in |
| Crankcase capacity | 4.1 gal |
Hydraulic System
| Maximum operating pressure | 2,900 psi |
|---|
Dimensions
| Wheelbase | 150 in |
|---|---|
| Transport Width | 111 in |
| Transport Height | 138 in |
| Transport Length | 504 in |
| Width w/ Outriggers Extended | 259 in |
| Upper Structure Tail Swing Radius | 131 in |
| Carrier/Base Length | 309 in |
Transmission
| Max Speed - Forward | 21.9 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
| Transmission Type | Powershift |
Boom
| Max Height @ Max Raise Angle - no jib | 960 in |
|---|---|
| Min Height @ Max Raise Angle | 384 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 3 |
| Swing Speed | 2 rpm |
