Link Belt

HTC-11100

Truck Crane

Operating Weight
112,233 lb
Max Lift Capacity
220,462 lb
Max Speed - Forward
56.4 mph
Displacement
775 in³
All truck cranes

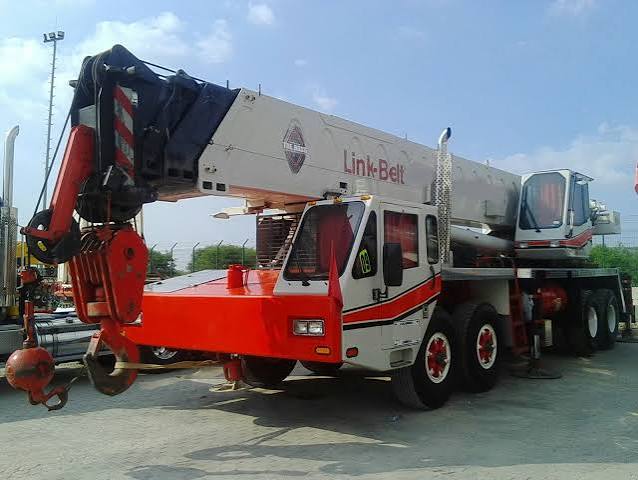

Link Belt HTC-11100 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight112,233 lb
Operating Voltage12 V
Tire Size14.00 R 20
Upper Structure Hydraulic System Fluid Capacity250.0 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width132 in
Transport Height143 in
Transport Length567 in
Width w/ Outriggers Extended361 in
Upper Structure Tail Swing Radius178 in
Carrier Length480 in

Transmission

Transmission specifications
Max Speed - Forward56.4 mph
Max Speed - Reverse10.0 mph
Number of Forward Gears11
Number of Reverse Gears3
Transmission TypeFuller Roadranger RTO 14909MLL

Boom

Boom specifications
Max Lift Capacity220,462 lb
Max Height @ Max Raise Angle - no jib1,380 in
Min Height @ Max Raise Angle445 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Height1,380 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power430.5 hp
Displacement775 in³
Power Measured @2,100 rpm
MakeLink-Belt
Max Torque1,450 lb-ft
Torque Measured @1,200 rpm
