Liugong

CLG936LC

Excavator

Operating Weight
79,807 lb
Max Digging Depth
289 in
Net Power
260.2 hp
All excavators

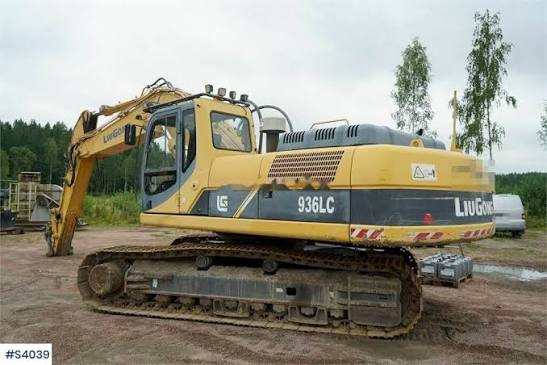

Liugong CLG936LC Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight79,807 lb
Hydraulic Pump Flow Capacity148.0 gal/min
Hydraulic System Relief Valve Pressure4,641 psi

Engine

Engine specifications
Engine Model6CTA8.3
Displacement507 in³
Power Measured @2,200 rpm
Net Power260.2 hp

Dimensions

Dimensions specifications
Ground Clearance22 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth289 in
Max Reach Along Ground438 in
Max Loading Height282 in
Max Vertical Wall Digging Depth254 in
Shipping Length of Unit441 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity2.11 yd³
