Dynapac
F5CS
Asphalt Paver
17 specifications

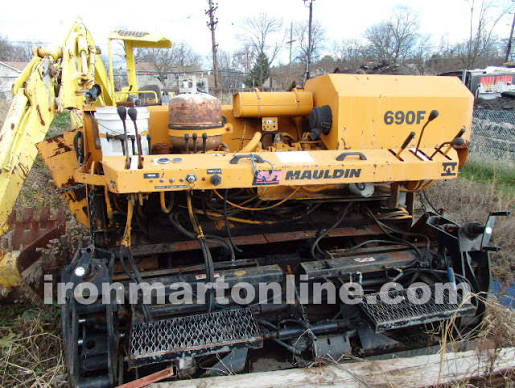

Mauldin
690F
- Operating Weight w/ Screed
- 9,700 lb
- Paving Width - max
- 156 in
- Gross Power
- 38.0 hp
- Length w/ Screed
- 107 in
1 / 5
Image 1 of 5
Specifications
12 data points
Operating Specifications
| Operating Weight w/ Screed | 9,700 lb |
|---|---|
| Fuel Capacity | 13.0 gal |
| Hydraulic System Fluid Capacity | 17.5 gal |
Engine
| Gross Power | 38.0 hp |
|---|
Dimensions
| Transport Width | 102 in |
|---|---|
| Transport Height | 71 in |
| Length w/ Screed | 107 in |
| Width w/ Hopper Open | 119 in |
Hopper/Paver
| Paving Width - max | 156 in |
|---|---|
| Paving Speed - max | 1.6 mph |
| Travel Speed - max | 2.8 mph |
| Auger Diameter | 9 in |
