Mecalac
Case
21D
Wheel Loader
43 specifications
1 / 5

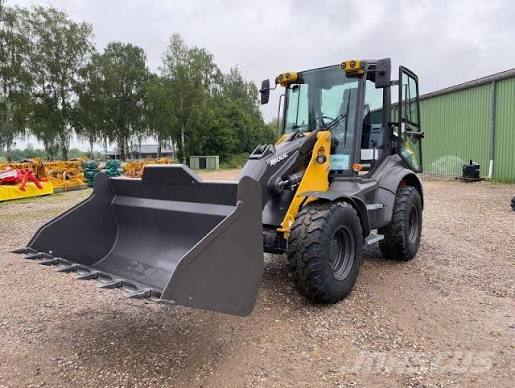

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 12,787 lb |
|---|---|
| Fuel Capacity | 34.4 gal |
| Tire Size | 14.5-20 |
| Hydraulic System Fluid Capacity | 35.4 gal |
| Operating Voltage | 12 V |
| Turning Radius | 146 in |
| Rear Axle Oscillation | 10 ° |
| Front Axle/Diff Fluid Capacity | 3.0 gal |
| Rear Axle/Diff Fluid Capacity | 3.2 gal |
| Steering Angle | 35 ° |
Engine
| Engine Model | Deutz TD 2.9 L4 |
|---|---|
| Power Measured @ | 2,600 rpm |
| Net Power | 75.0 hp |
| Aspiration | Low-noise water-cooled turbo diesel engine |
| Torque Measured @ | 1,600 rpm |
| Battery | 95 Ah |
Hydraulic System
| Pump Flow Capacity | 22.2 gal/min |
|---|---|
| Pump Type | Single circuit hydraulics with central gear pump |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 113 in |
| Wheelbase | 83 in |
| Width Over Tires | 81 in |
| Reach at Max Lift and Dump | 30 in |
| Length with Bucket on Ground | 240 in |
| Hinge Pin - Max Height | 144 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Breakout Force | — |
| Tipping load Standard bucket | 8,378 lb |
| Dumping angle, top | 45 ° |
| Lifting force | 5400 newton |
| Payload on forks, max. turned, frontal | 5,512 lb |
| Thrust force | 4650 newton |
