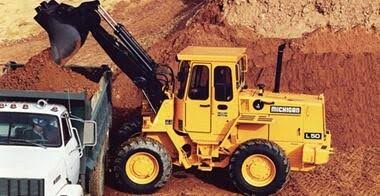

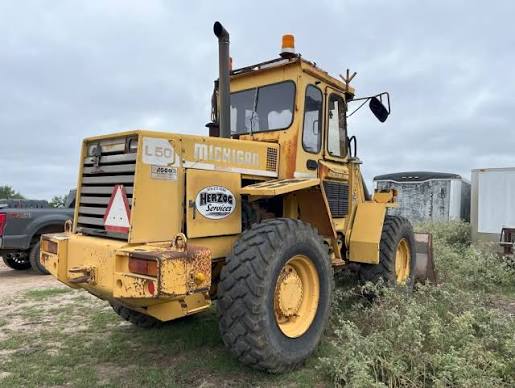

L50

Specifications

49 data points

Operating Specifications specifications
Fuel Capacity	42.3 gal
Static Tipping Weight	11,993 lb
Operating Voltage	24 V
Engine Oil Fluid Capacity	2.8 gal
Rear Axle Oscillation	24 °
Alternator Supplied Amperage	60 A
Front Axle/Diff Fluid Capacity	6.0 gal
Rear Axle/Diff Fluid Capacity	6.0 gal
Engine Oil Capacity	2.8 gal
Static Tipping Load - Bucket	11,990 lb
Front Diff Fluid Capacity	6.0 gal
Rear Diff Fluid Capacity	6.0 gal
Static Tipping Load - Forks	6,614 lb
Static Tipping Load - Material Handler	1,654 lb

Dimensions specifications
Ground Clearance	16 in
Height - Top of Cab	117 in
Wheelbase	107 in
Width Over Tires	85 in
Reach at Max Lift and Dump	33 in
Length with Bucket on Ground	240 in
Hinge Pin - Max Height	146 in
Length w/ Bucket on Ground	240 in
Reach at Max Height and Dump	33 in
Dump Clearance at Max Lift	113 in
Max Lift Height	142 in
Fork Tine Length	49 in
Length with out Forks on Ground	248 in
Height at Hook Max Reach	61 in
