Terex
TA27
Off-Highway Truck
46 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Fuel Capacity | 158.6 gal |
|---|---|
| Tire Size | 29.5R25 |
| Engine Oil Capacity | 11.9 gal |
| Cooling System Fluid Capacity | 19.9 gal |
| Hydraulic System Fluid Capacity | 66.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 11.9 gal |
Engine
| Engine Model | QSX15 |
|---|---|
| Displacement | 915 in³ |
| Gross Power | 502.9 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Make | Cummins |
Weights
| Operating Weight | 171,012 lb |
|---|---|
| Total Empty | 69,005 lb |
| Front Axle - empty | 35,935 lb |
| Total Loaded | 171,145 lb |
| Rear Axle - empty | 33,069 lb |
| Front Axle - loaded | 49,185 lb |
| Rear Axle - loaded | 121,960 lb |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Wheelbase | 211 in |
| Overall Length | 421 in |
| Overall Width | 138 in |
| Overall Height | 154 in |
| Dump Height | 258 in |
| Dump Ground Clearance | 22 in |
Transmission
| Max Speed | 33.6 mph |
|---|---|
| Transmission Type | Allison 4600 ORS automatic |
| Number of Forward Gears | 6 |
Drive System
| Drive Config | 6X6 |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 102,008 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 12.0 s |
| Lower Time | 11.0 s |
| Capacity - Heaped | 38.00 yd³ |
| Capacity - Struck | 30.10 yd³ |

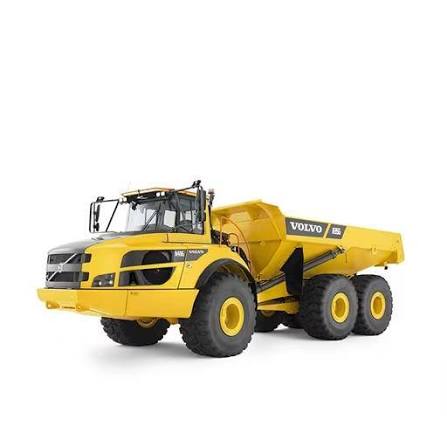

Comparable machines
